Page 367
Task

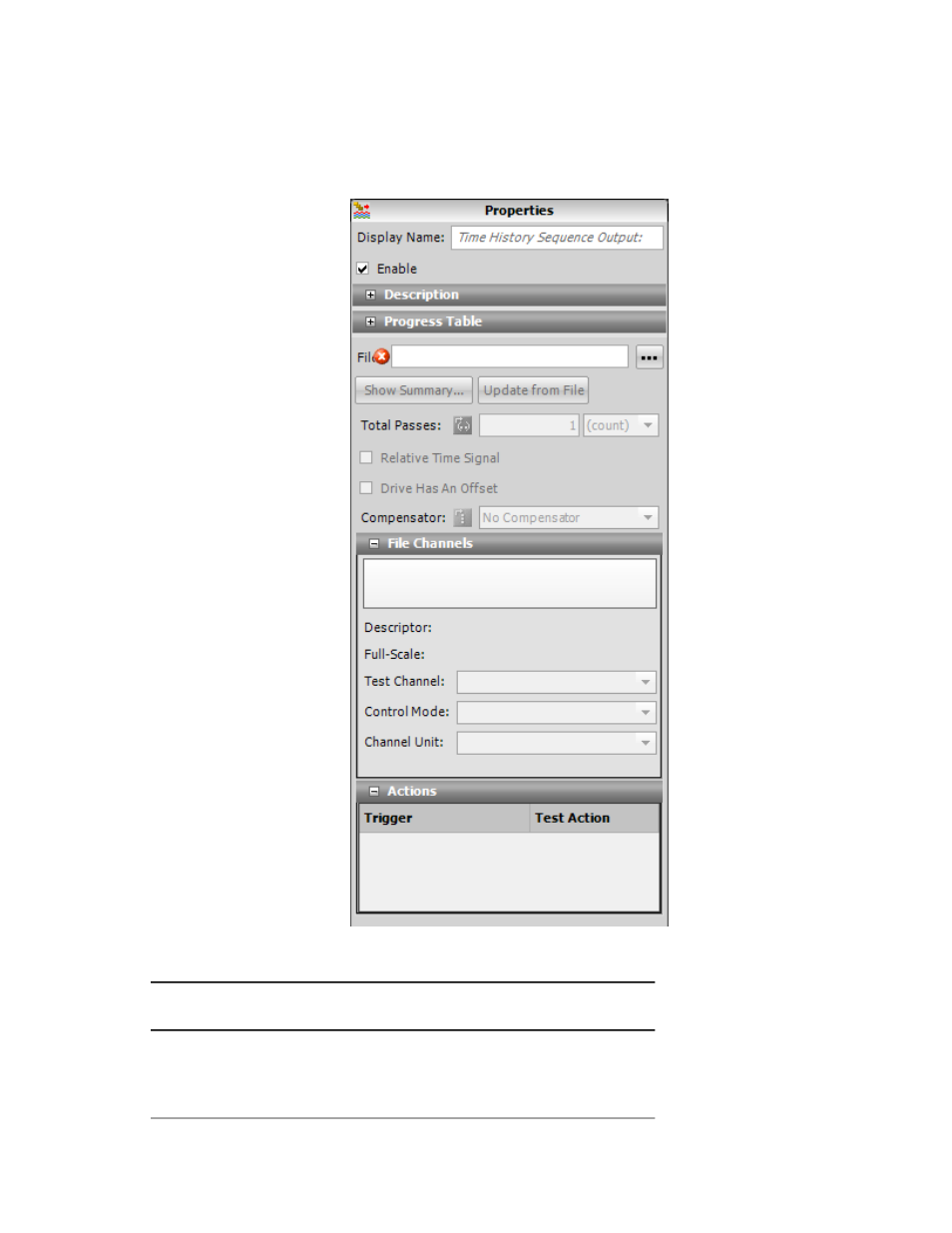

Time History Sequence Output Properties
Time History Sequence Output Properties
Description
Item
Enabling the Show Distance Traveled check box
causes the current state and target state columns in
Progress Table >
Show Distance
Traveled
the Progress Table to show distance values at
runtime. When this check box is enabled, the current
MTS TestSuite | 367
Test Activities
