Llc(t) specimen overview – MTS Multipurpose Elite User Manual
Page 304

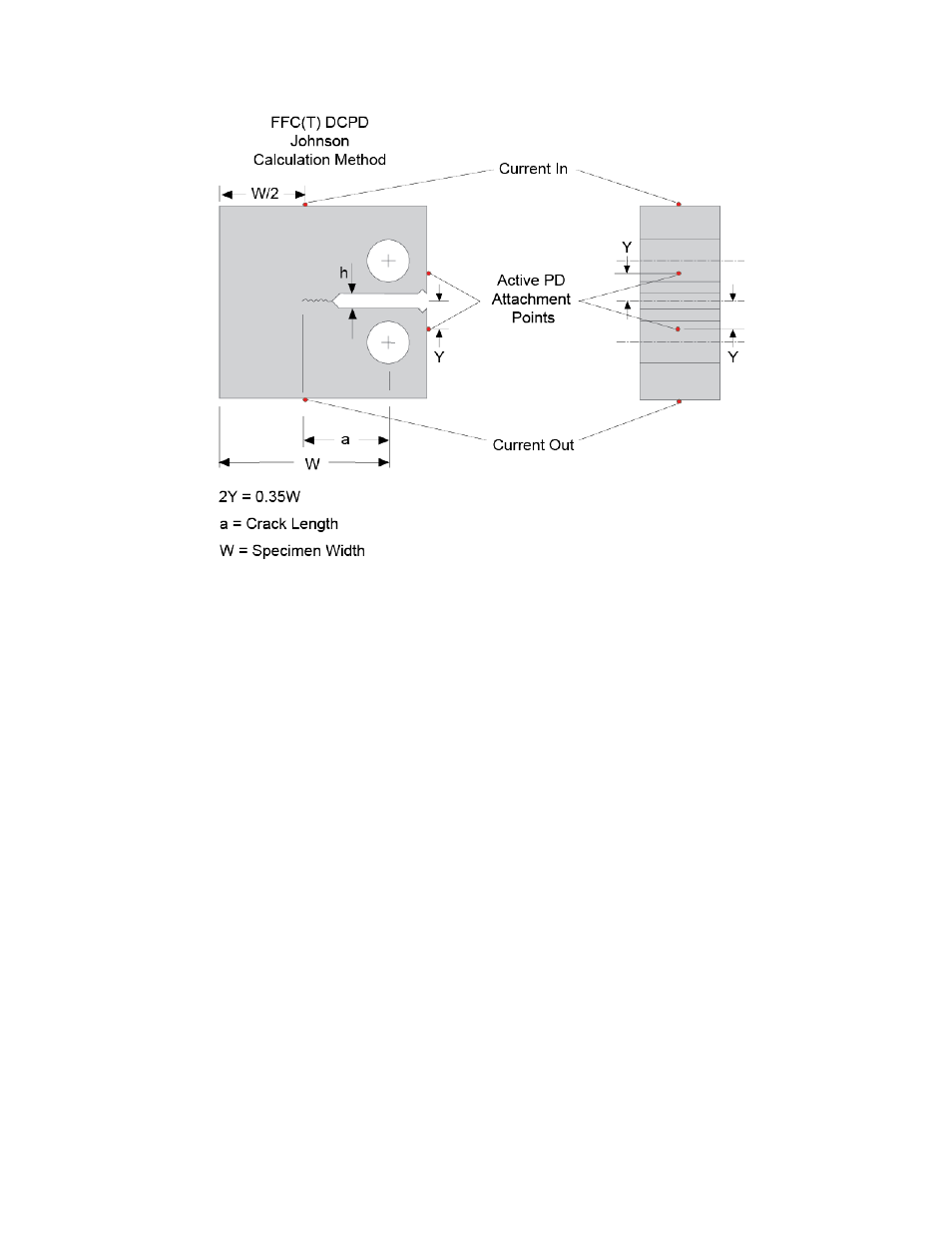

FFC(T) Specimen DCPD (Johnson)
For More Information
Task
Reference
(p. 301)
LLC(T) Specimen Overview
The LLC(T) specimen is the load-line compact tension specimen. It is used for J-Integral Characterization
of Fracture Toughness (JIC) tension and Crack-Tip Opening Displacement (CTOD) materials testing.
304 | MTS TestSuite
Working with Specimens
