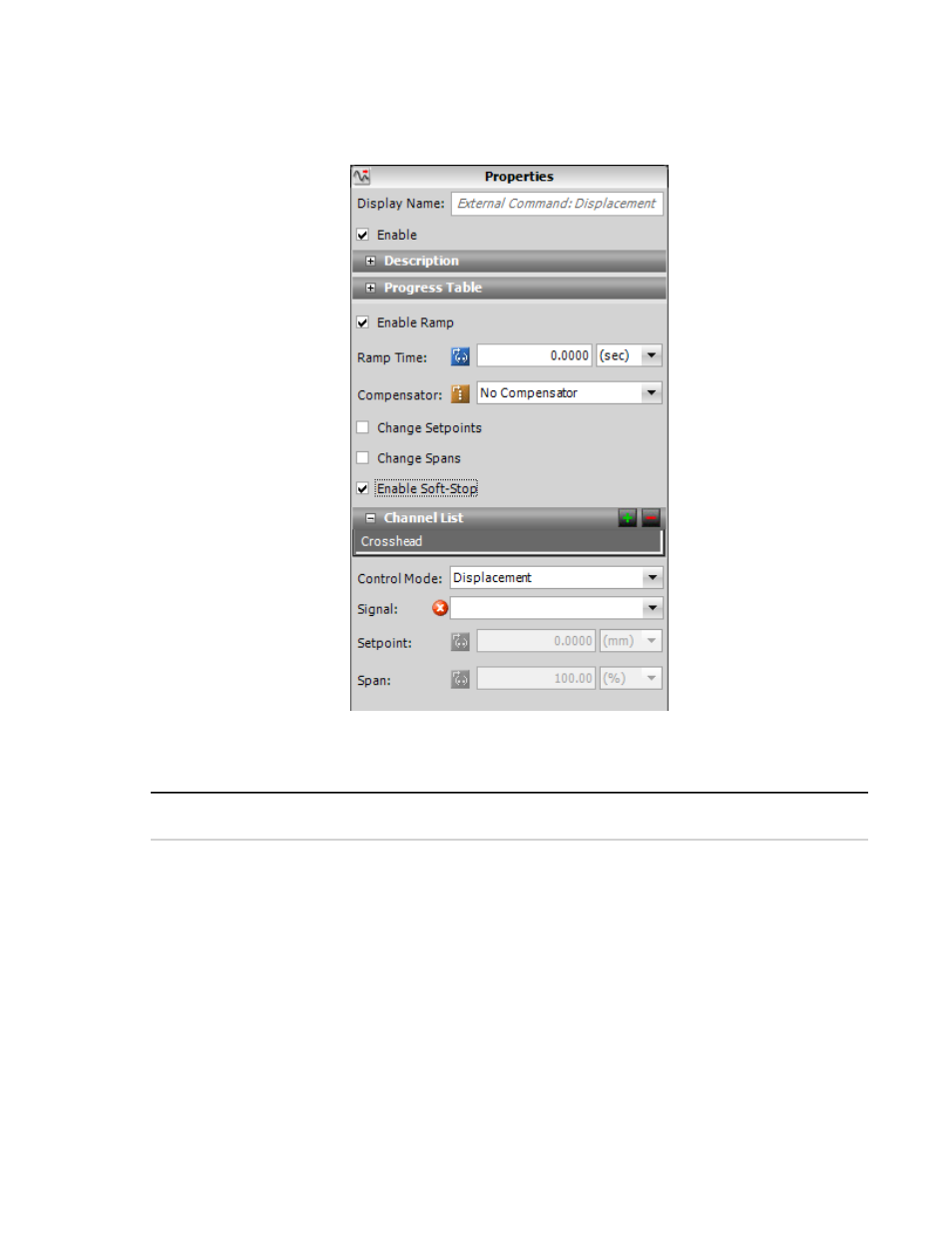

External Command Activity Properties
External Command Activity Properties
External Command Activity Properties
Description
Item
Name that is shown for the activity in the application.
Display Name
Select to enable the activity. Clear to disable the activity.
Enable
Text that is shown for the activity when you hover your cursor over the
activity icon in the workflow on the Procedure tab.
Description
Specify whether you want to view the Progress Table during a test. Options
are:
Progress Table
•
Fixed—Shows the progress of the activity in the Test Progress Table
while the activity is executing, and for the duration of the test.
•
Transient—Shows the progress of the activity in the Test Progress
Table only when the activity is executing. When the activity ends, the
MTS TestSuite | 345
Test Activities
