Limit types – MTS Multipurpose Elite User Manual
Page 551
Description
Item
Click to add a legend label to the chart, and type the name in the box.
Legend Label
Limit Types
Limit Types are not available for all charts. The charts that do utilize them contain only the limits that pertain
to that particular chart.
Horizontal limit type

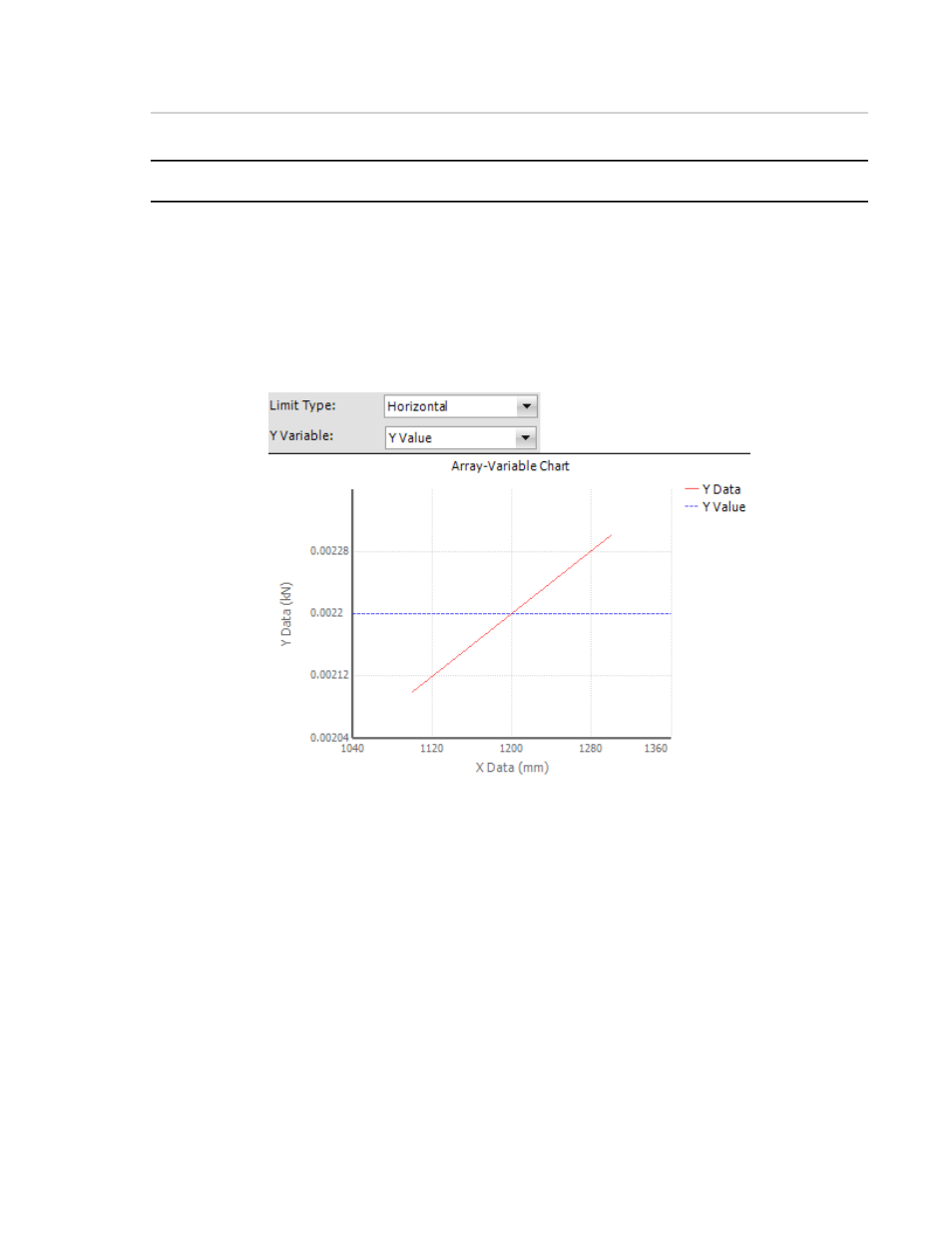

When you select the Horizontal limit type, the Y Variable specifies the value where the limit line crosses
the Y axis, as shown in the following figure.
Vertical limit type
When you select the Vertical limit type, the X Variable specifies the value where the limit line crosses the
X axis, as shown in the following figure.
MTS TestSuite | 551
