Set Digital Output at Runtime
Follow these steps to create a Digital I/O test-run display that allows an operator to toggle a digital output
during a test run.
1. Click the Test-Run Display tab > Designer tab > Toolbox panel.
2. In the Interactive section, click the Digital IO tool and drag it to the desired location in the Designer
tab workspace.
3. In the Properties panel, click the Signal ellipsis button. The Select a Signal window appears.
4. Select a Digital Output signal and click OK. The Set Digital Outputs at Runtime check box becomes
available.
5. Select the Set Digital Outputs at Runtime check box. The digital outputs buttons appear in the Digital
Output test-run display.

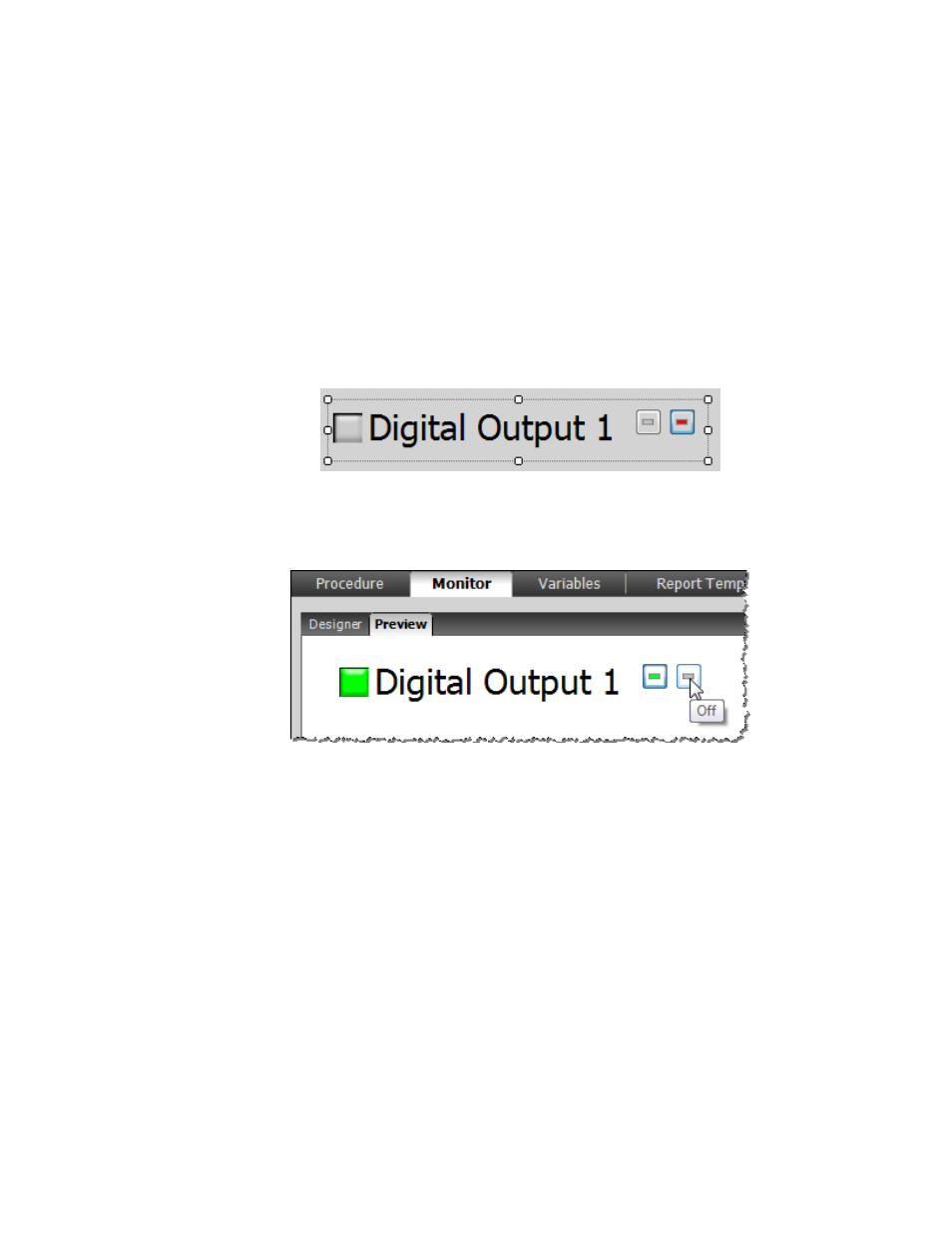

Digital Output Test-Run Display
6. To preview the test-run display, click the Preview tab. The following graphic shows a preview of the
Digital Output test-run display.
Preview the Test-Run Display
For More Information
Concept
About Digital IO Displays (p. 578)
Reference
Digital IO Properties (p. 578)
Example Digital IO Workflow (p. 581)
Example Digital IO Workflow
Within the test design, create an operator message window at the desired location within the test sequence.
Instruct the operator to toggle the digital input on or off as appropriate.
For More Information
Concept
About Digital IO Displays (p. 578)
