Digital IO Test-Run Display Properties
Description Item
The signal selected to monitor. Click the ellipsis to open the Select a Signal
window. The Signal list reflects the digital signals included in the test resources. Signal
You can only select a digital input or digital output signal. Selecting a digital output
signal enables the Set Digital Outputs at Runtime check box.
Allows an operator to toggle a digital output during a test run. Set Digital
Outputs at
Runtime
Note:
To enable this check box, select a digital output signal in the Signal list.
Default: Disabled
Optional. Defines a condition that determines when an On/Off button (to change
the signal) becomes available to an operator during a test run. Clicking the ellipsis Enabled
Condition
opens the Calculation Editor window. This box is active when a digital output
signal is specified in the Signal box and the Set Digital Outputs at Runtime is
selected.
For More Information
Concept
About Digital IO Displays (p. 578)
Task
Create a Digital IO Test-Run Display (p. 580)
Set Digital Output at Runtime (p. 581)
Display Name
This is the name that is shown for the object in the application. It is a required property so the box cannot
be empty. The default is the type of the chart and the number indicating how many are on the Display tab,
such as Cycle Statistics Table 1. You can also click in the box and type a new name.
Note:
The Display Name is only used in the event of validation errors.

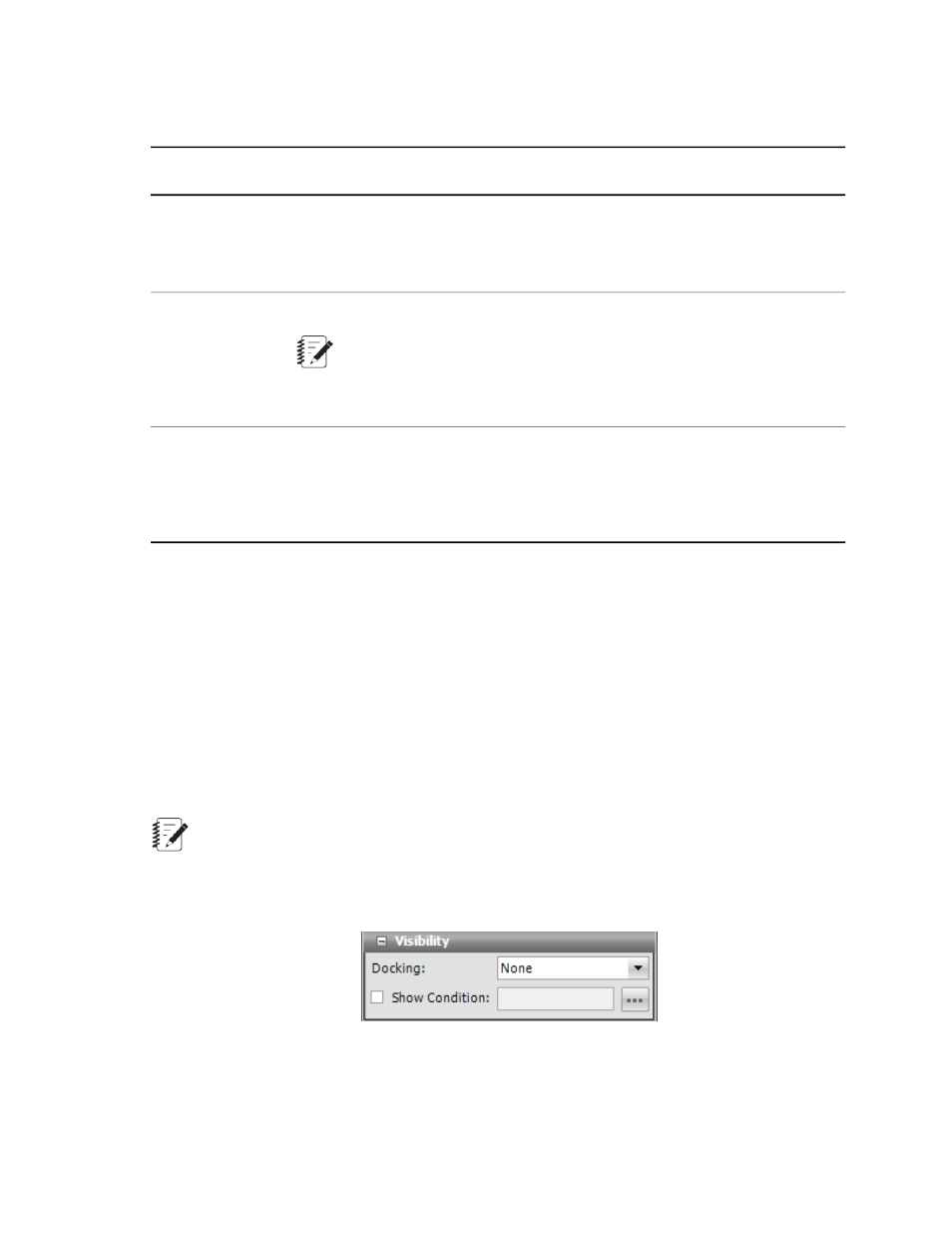

Visibility Panel
Visibility Panel
For Docking, select where on the monitor you want the test-run display to be positioned, Top, Left, Bottom,
Right, or Fill, where the display fills the entire tab or panel.
