Variable Data Table
About Variable Data Tables

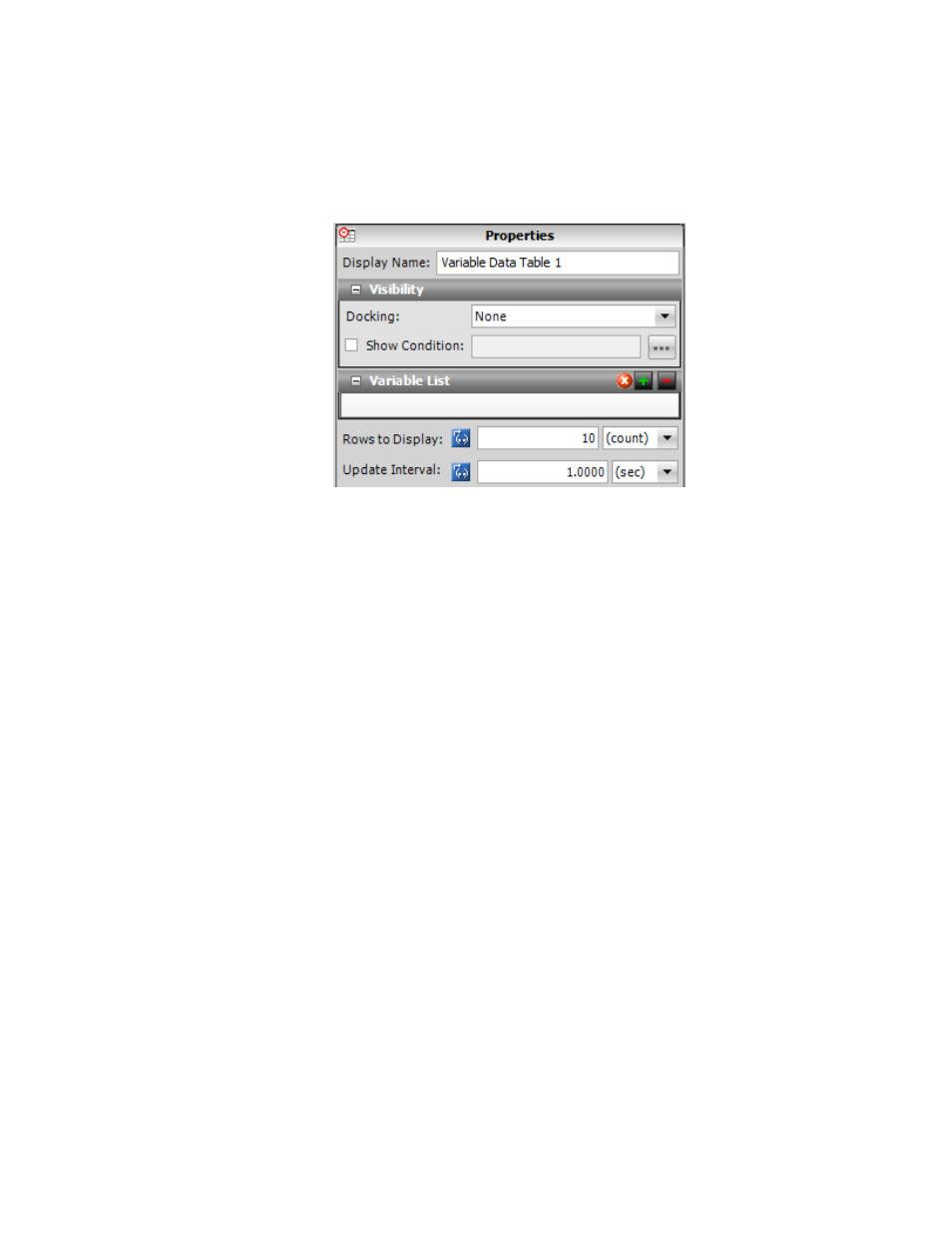

Variable Data Table Properties
The Variable Data Table shows the values of selected variable arrays in the test-run display. Click the
green plus sign in the Variable List panel to display the Variables Selection window. The variables that
you select in the Variables Selection window (double-click or use arrows to move variables from Available
Variables to Selected Variables) are placed in a horizontal row. The variables form the table columns.
You set the number of rows in the Rows to Display box.
As the test runs, the values of the variables appear in the rows. The values update periodically based on
the time setting of the Update Interval box. For example, you select one variable and use the default
settings of 10 rows to display and an update interval of 1 second. The Variable Data Table shows you
the value of the variable for each of the last 10 seconds with a new updated value every second for as
long as the test runs. The last value added to the table is the last value from the test.
While the test runs, you can copy the contents of the table to a Microsoft Excel worksheet. The table clears
when the test ends.
