MTS Multipurpose Elite - Manual (Page 406)

• Trigger continuously
• Tolerance: ±50 lbs
• Sensitivity: 5 lbs

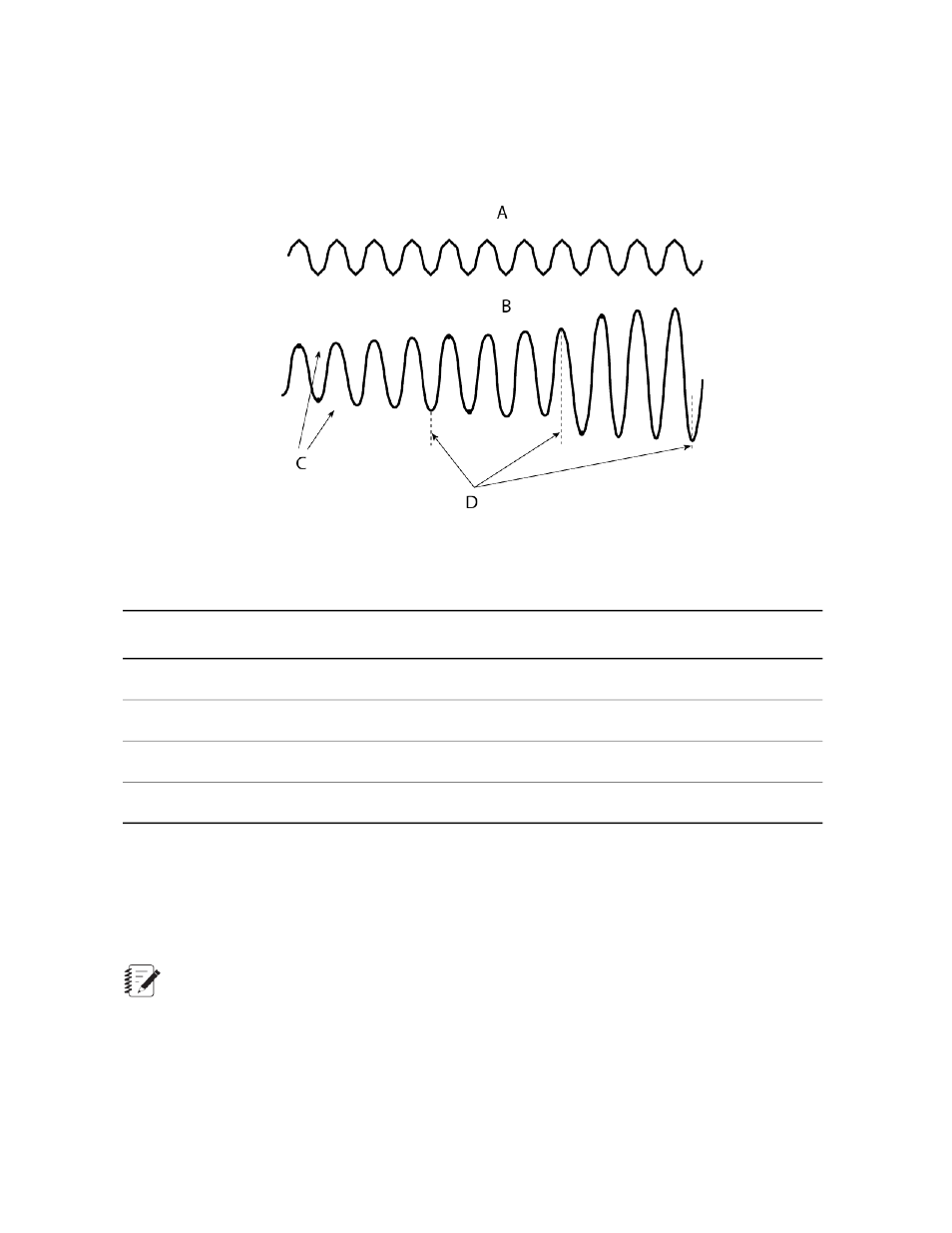

Peak-Valley Change Detector Activity Example
Example Properties
Description Callout
Strain Command
A
Force Signal
B
100 lbs (±50 lbs) Bands
C
Trigger Data Acquisition Activities
D
The test command cycles between ±0.0001 strain and you are monitoring a force signal.
Once a peak or valley on the force signal changes more than ± 50 lbs, the activity generates a trigger
signal that starts a Data Acquisition activity.
The Data Acquisition activity would use the Peak-Valley Change Detector activity as its trigger. A single
Data Acquisition activity could be run multiple times with this change detector.
Note:
It is a best practice to specify a number of cycles to run before you begin monitoring to allow a
settling-in period.
For More Information
Concept
Peak-Valley Change Detector Activity Overview (p. 403)
