Description Item
Selecting this check box enables the Show Condition box, which
shows a picture in the test-run display depending on whether defined
criteria has been met. Use Show
Condition
Clearing the check box disables the Show Condition box. The image
is always shown in the test-run display.
Show Condition Note:
You must select the Use Show Condition check box to enable
the Show Condition box.
Defines the condition by which to show an image in the test-run
display. The Show Condition expression must evaluate to True to
show the picture in the test-run display.
Clicking the ellipsis opens the Calculation Editor. If the equation
defined in the Calculation Editor to show the condition cannot be
validated, and error message is logged to the Error list.
For More Information
Concept
About Images (p. 590)
Task
Add an Image to a Test-Run Display (p. 593)
Display Name
This is the name that is shown for the object in the application. It is a required property so the box cannot
be empty. The default is the type of the chart and the number indicating how many are on the Display tab,
such as Cycle Statistics Table 1. You can also click in the box and type a new name.
Note:
The Display Name is only used in the event of validation errors.

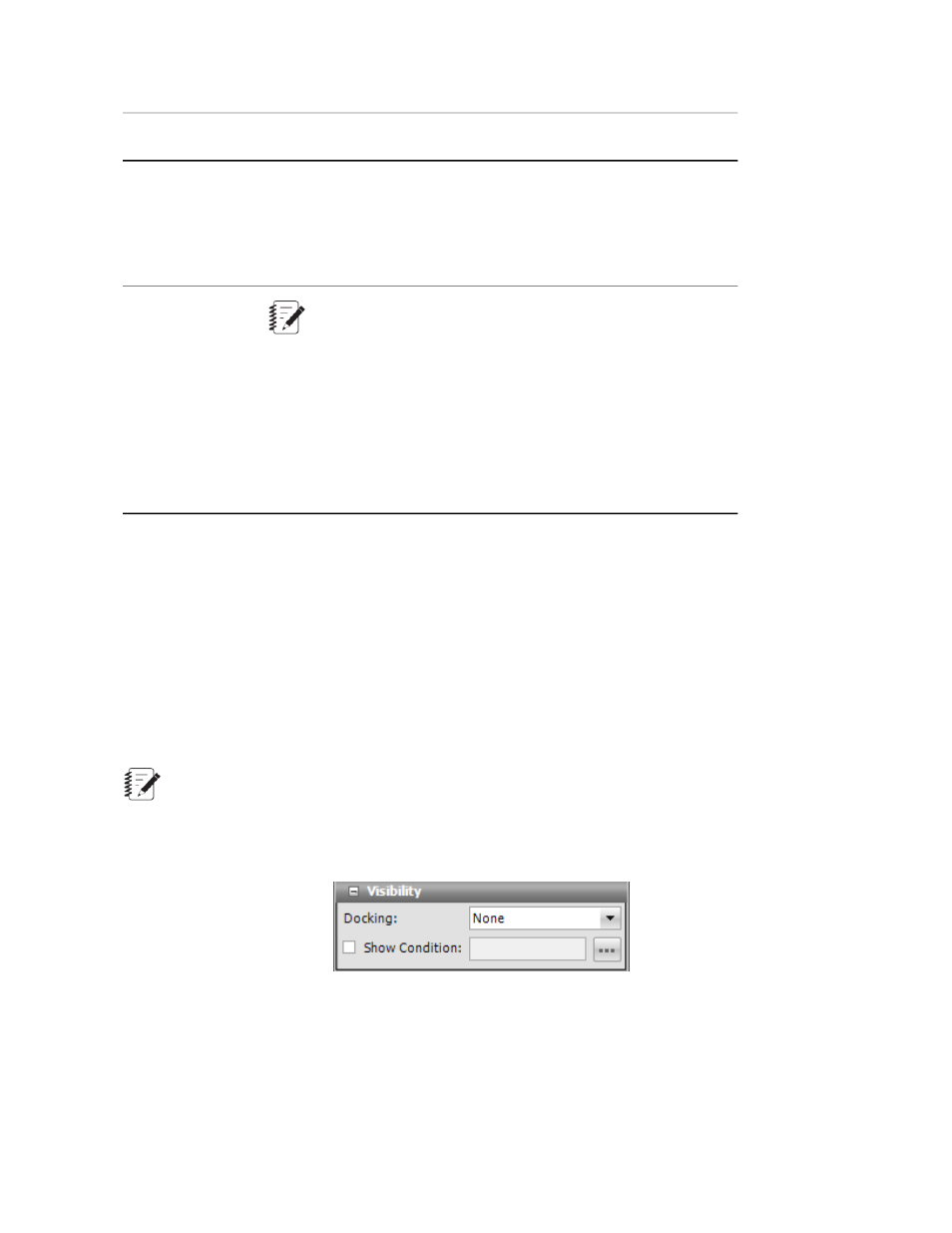

Visibility Panel
Visibility Panel
For Docking, select where on the monitor you want the test-run display to be positioned, Top, Left, Bottom,
Right, or Fill, where the display fills the entire tab or panel.
Show Condition lets you show or hide the test-run displays, depending on the condition of the variable
expression. For example, you could set up a condition to check the variable containing the specimen type
for a Set Variable test-run display to make visible the diameter only when the specimen type is round, but
