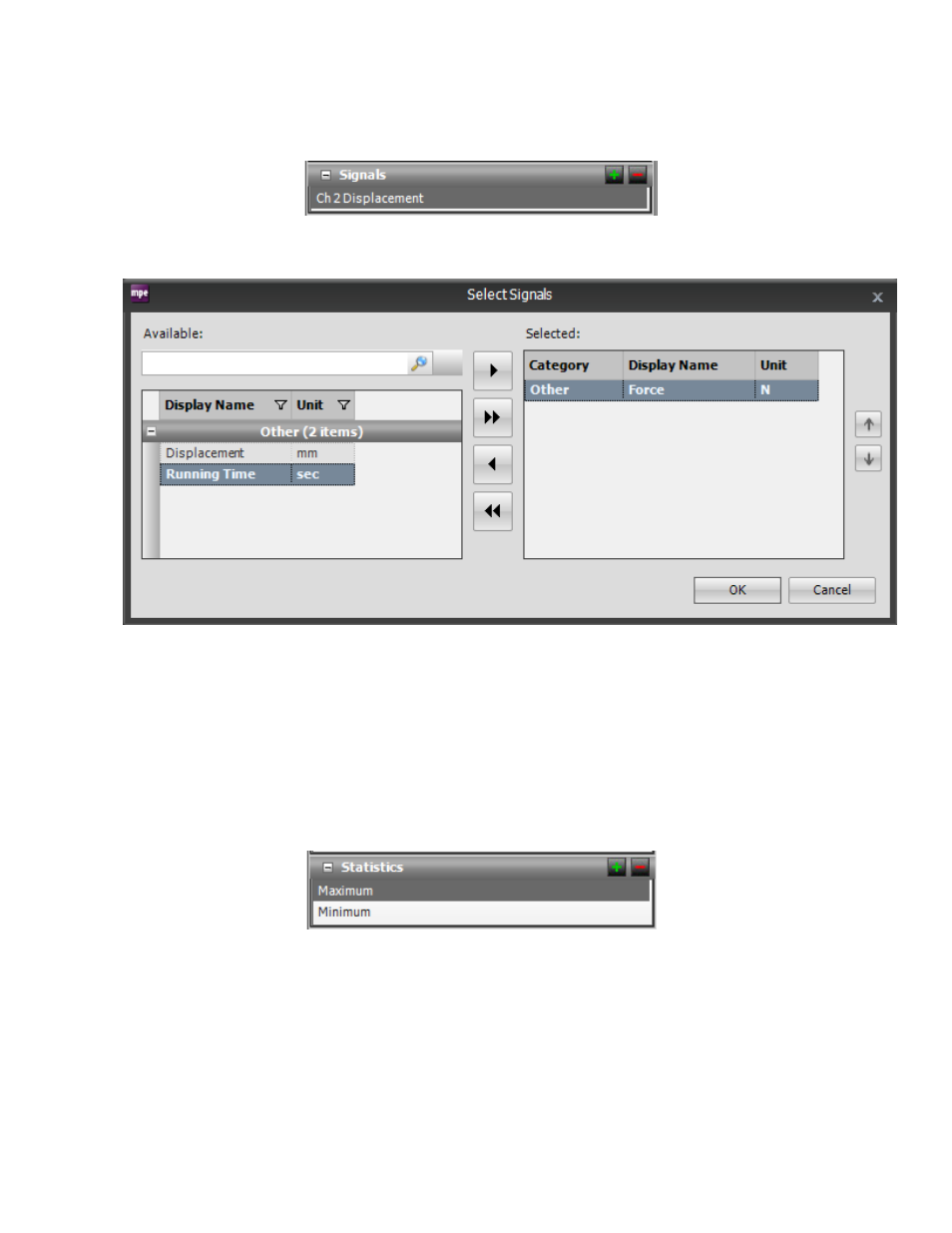

Signals Panel
Select the signal(s) that you want to monitor. Click the green plus sign to open the Select Signals window
(see the following figure).
Select Signals Window
In the Available column, click the signal, and click the arrow to move it to the Selected column. Click the
double arrows to move all available statistics from the Available column to the Selected column or from
the Selected column to the Available column. Then click OK. The selected signals will appear in the
Properties panel.
To remove a signal from the list, select the signal name in the Properties panel, and click the red minus
sign.
Statistics Panel
Select the statistic(s) that you want to monitor. Click the green plus sign to open the Select Statistics
window (see the following figure).
