Page 341
Values are collected for all cycles while the test runs. However, values are saved only for the cycles
selected in the Select Cycles window and the Starting Cycles and Final Cycles settings in the Data
Acquisition properties. The cycle number for each table entry is shown in the Variable Summary column
of the test results table.
For More Information
Task
Reference
Cycle + DAQ Activity Properties
(p. 335)
Dwell
Dwell Activity Overview

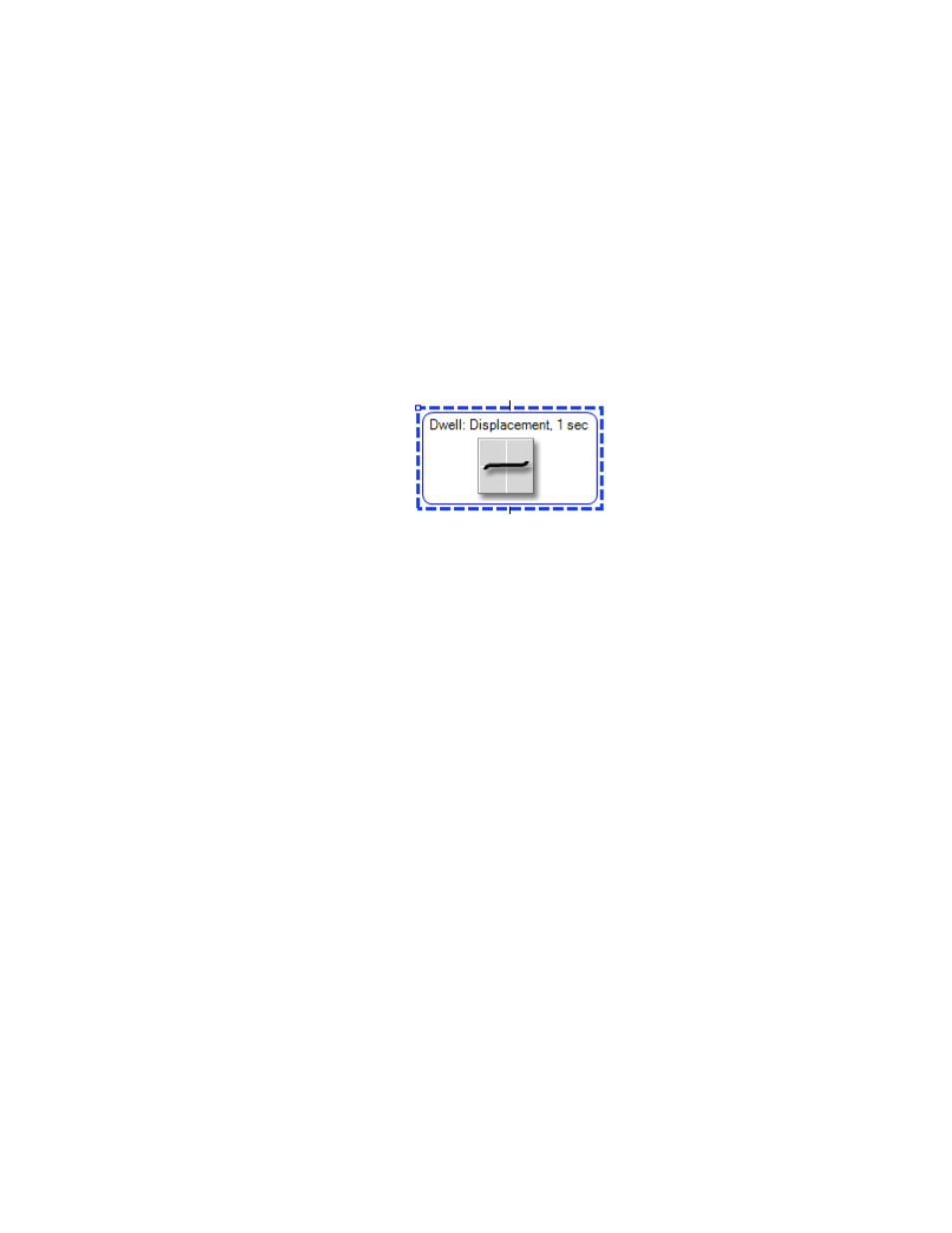

Dwell Activity Icon
The Dwell activity maintains a command for a specified duration at either the current level or a specified
level in a specified control mode. By default, the activity dwells at the current level (when the Dwell at
Current Value check box is selected in the Properties panel).
When you define a Dwell command activity, you must specify the duration of the command.
MTS TestSuite | 341
Test Activities
