MTS Multipurpose Elite User Manual
Page 199
3. In the Save data to variables? panel, select the Yes, automatically map variables or Yes, manually
map variables option and click Configure.
Note:
If you select Yes, automatically map variables, the Map Variables window opens in read-only
mode.

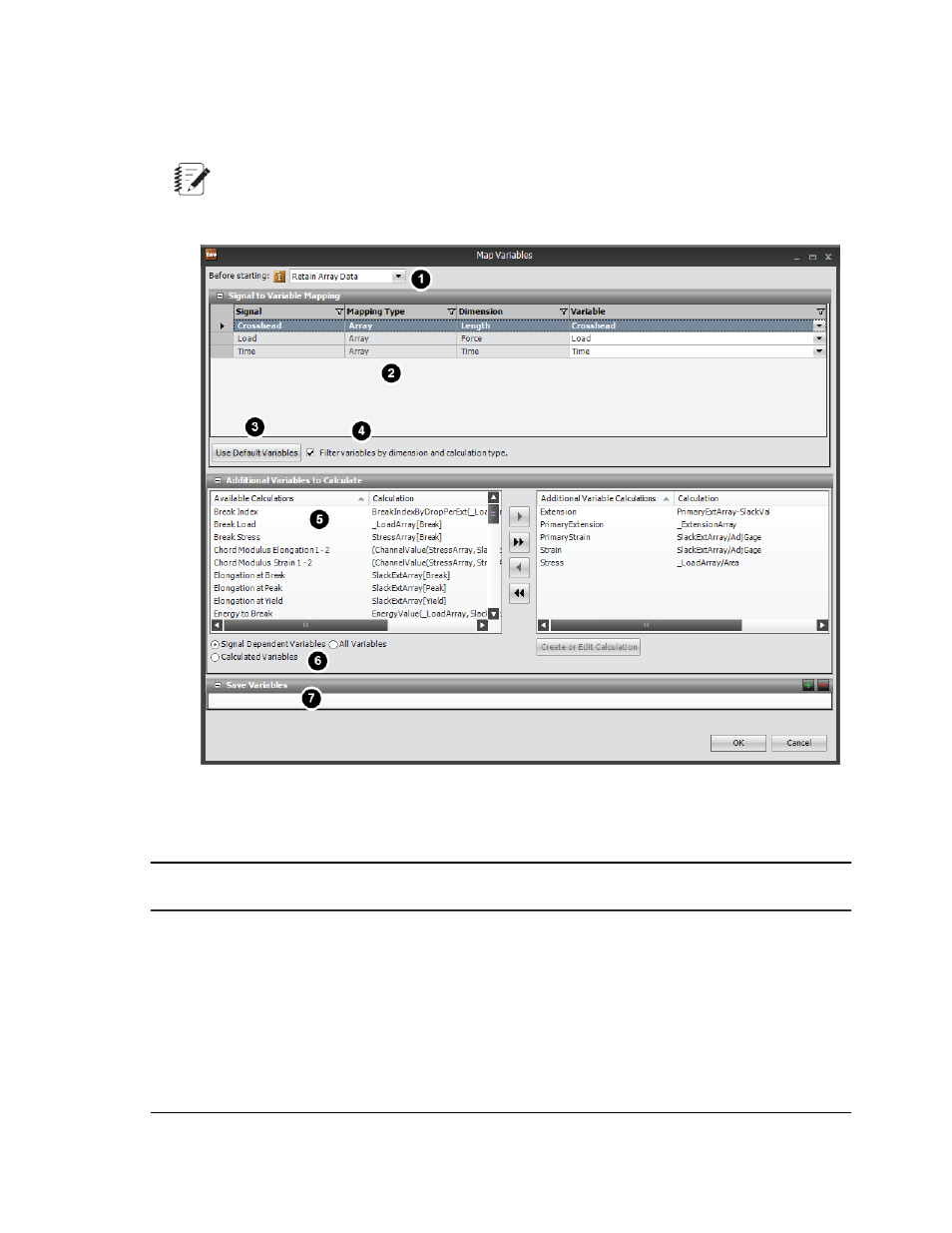

Map Variables Window
Map Variables Window Properties
Description
Property
No.
If you selected the Yes, manually map variables option for
the Save Data to variables? property in the DAQ activity
Before starting
1
properties panel, a Before starting property appears in the
Map Variables window. Available options are:
•
Discard Array Data—(Default) Clears the array when the
activity starts.
•
Retain Array Data—Existing data remains and new points
are appended to the array.
MTS TestSuite | 199
Working with Variables
