Test Sequence
1. Add the Custom Waveform activity to your test.
2. In the Custom Waveform properties, select the Use Variables to Specify Arrays of End Levels and
Durations check box.
3. Create the array variables that define the duration values for the custom waveform.
a. On the Duration Array list, click .
• The New Numeric Variable properties window is automatically populated with the correct settings
for the duration array variable.
b. Click OK.
c. Repeat this procedure for the End-level array variable.
Important:
When using array variables to define end levels, you can only define ramp segments. If you
want to define a hold segment, enter the same end-level value in consecutive ramp segments.

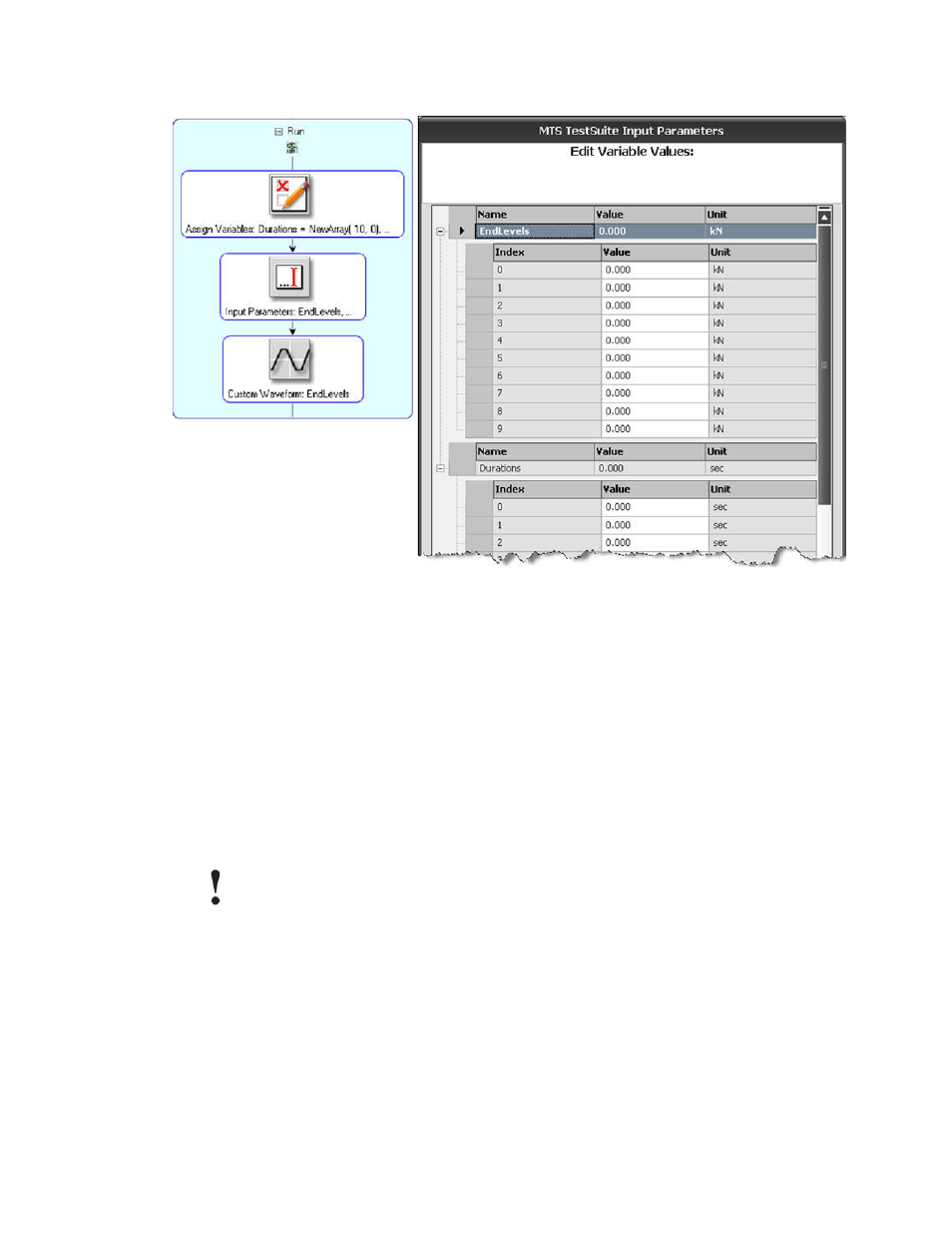

4. Assign Variables activity - add an Assign Variables activity to the test before the Custom Waveform
activity.
5. Set up the Assign Variables activity to use the NewArray(x,y) function to define the number of elements
and the default values for the EndLevelsArray and DurationsArray variables.
a. On the Assign Variables activity's Variable list, click the + icon.
