Test-Run Display Tab

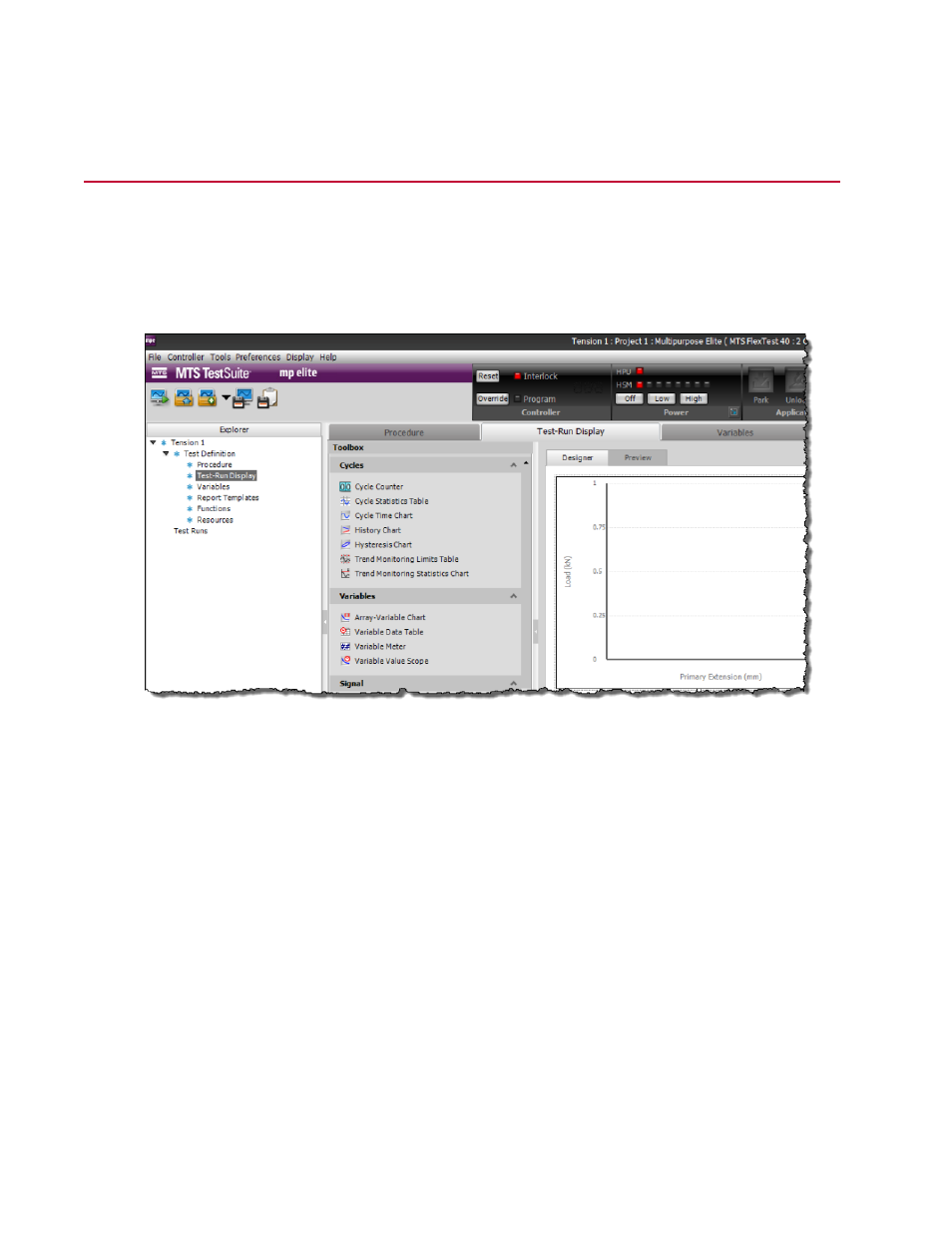

Use the Test-Run Display tab (see
(p. 484)) to create charts and tables shown
during a test-run to communicate information to an operator or allow operator interaction during a test run
(such as responding to a question). Click and drag the table or chart onto the Designer tab work area.
The design can have one or more tabs with charts, counters, and other status indicators. Then click the
Preview tab to see an example of what your charts or tables will look like during a test-run.
Test-Run Display Tab
484 | MTS TestSuite
