Clear-Com
Eclipse Configuration Software Instruction Manual 4 - 3
OPENING A PROJECT
To open a project (previously known as a configuration) click on the
‘File’ command on the Windows toolbar and select open or click on the
‘Open’ command on the ECS toolbar (CTRL-O). These commands
can also be accessed as Alt-F, O. All available projects appear within
the dialog box.

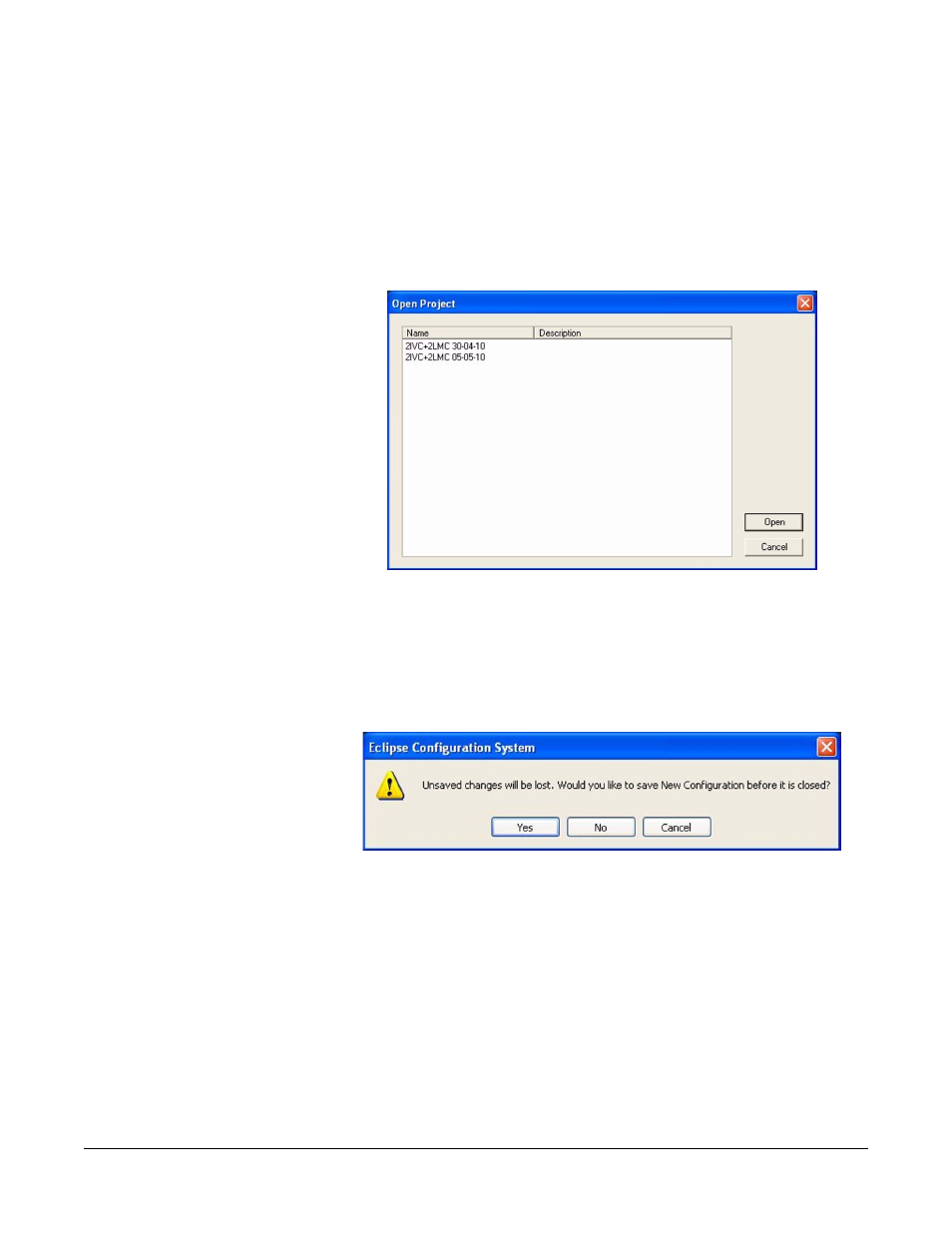

Figure 4-3: Project List
Identify the required project, highlight the project by selecting the
whole row from the left of the row and then click on the ‘Open’ button.
If a project is already open ECS will ask if the current project should be
saved before opening the new project.
Figure 4-4: Save Old Project Confirm Dialog
ECS users with Admin rights can always open a configuration
regardless of whether a password has been set in the configuration
manager and reset the password if required. If an ECS user without
Admin rights opens a password protected configuration they will be
asked for the password.
