Clear-Com Eclipse-Omega - Manual (Page 310)

Clear-Com
Eclipse Configuration Software Instruction Manual
7 - 5 8
Page
Displays a list of pages for the panel as a drop-down list. Click on the
required page to update the mimic to the page.
Save
Clicking on the ‘Save’ button on the Panel Programming toolbar will
display the label file save dialogue.

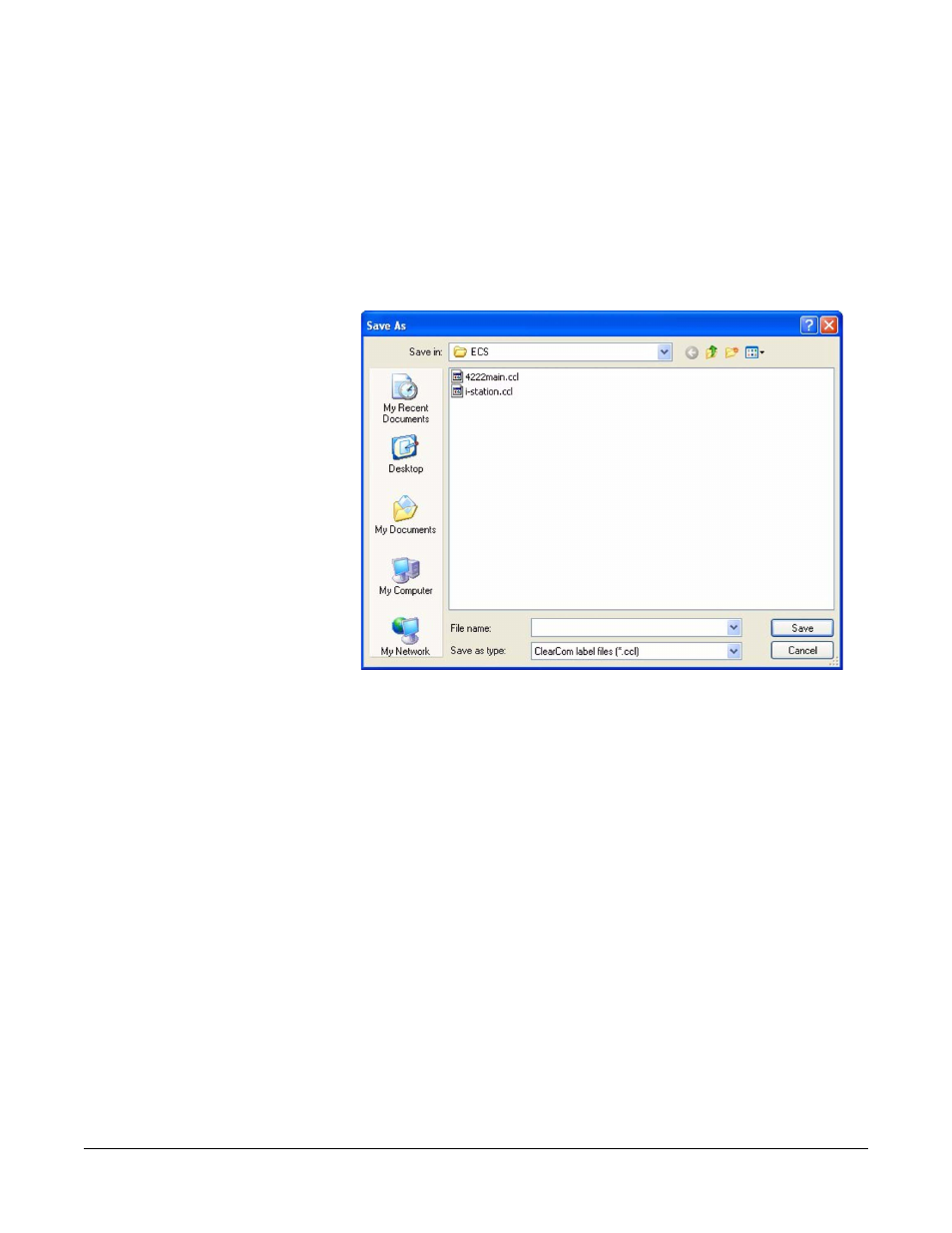

Figure 7-69: Label File Save Dialogue
Enter the name of the file which will default to the .ccl extension. The
keys from all pages are saved (including shift pages where supported)
but the keys from any expansion panels that may be fitted are not
saved in the file. Expansion panel labels must be saved separately.
Load
Clicking on the ‘Load’ button on the Panel Programming toolbar will
display the dialogue screen to select and open a panel label (.ccl) file.
