Eclipse Configuration Software Instruction Manual 7 - 4 7
To enable the feature in ECS
1. Open the required map configuration in ECS.
2. From the ‘Cards and ports’ screen, select the required panel.
The Advanced Settings screen opens.
3. From Advanced Settings, select Fixed Group Assignment from AP
Panel Options. Click the drop-down box to turn the feature on or off.
• When the check box reads “true” the feature is on.
• When the check box reads “false” the feature is off.

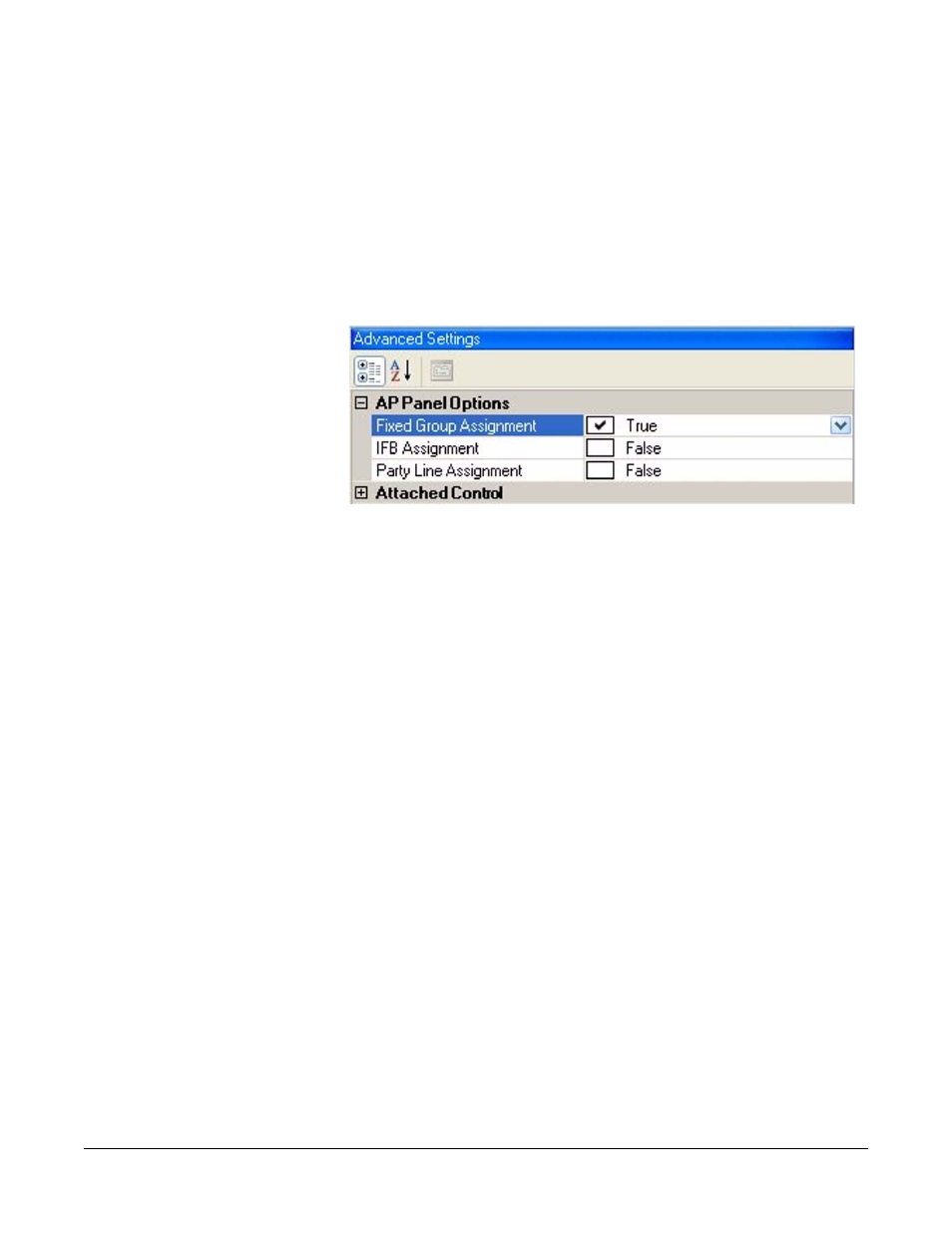

Figure 7-57: AP Panel Options
4. From ‘Panels’ in the Configuration menu select the required panel or
the panel to which the AP22 is connected. If the AP22 is to be
configured select the AP22 panel in the list of expansion panels to
the right of the main panel list.
5. Assign the fixed group source as a “talk” key on the assignment
panel on screen.
6. Assign potential fixed group “members” as “listen” keys on the
assignment panel on the screen.
7. From the Eclipse Downloads menu, click Apply and Reset.
ECS uploads the information to the assignment panel.
