Clear-Com
Eclipse Configuration Software Instruction Manual
5 - 4 1

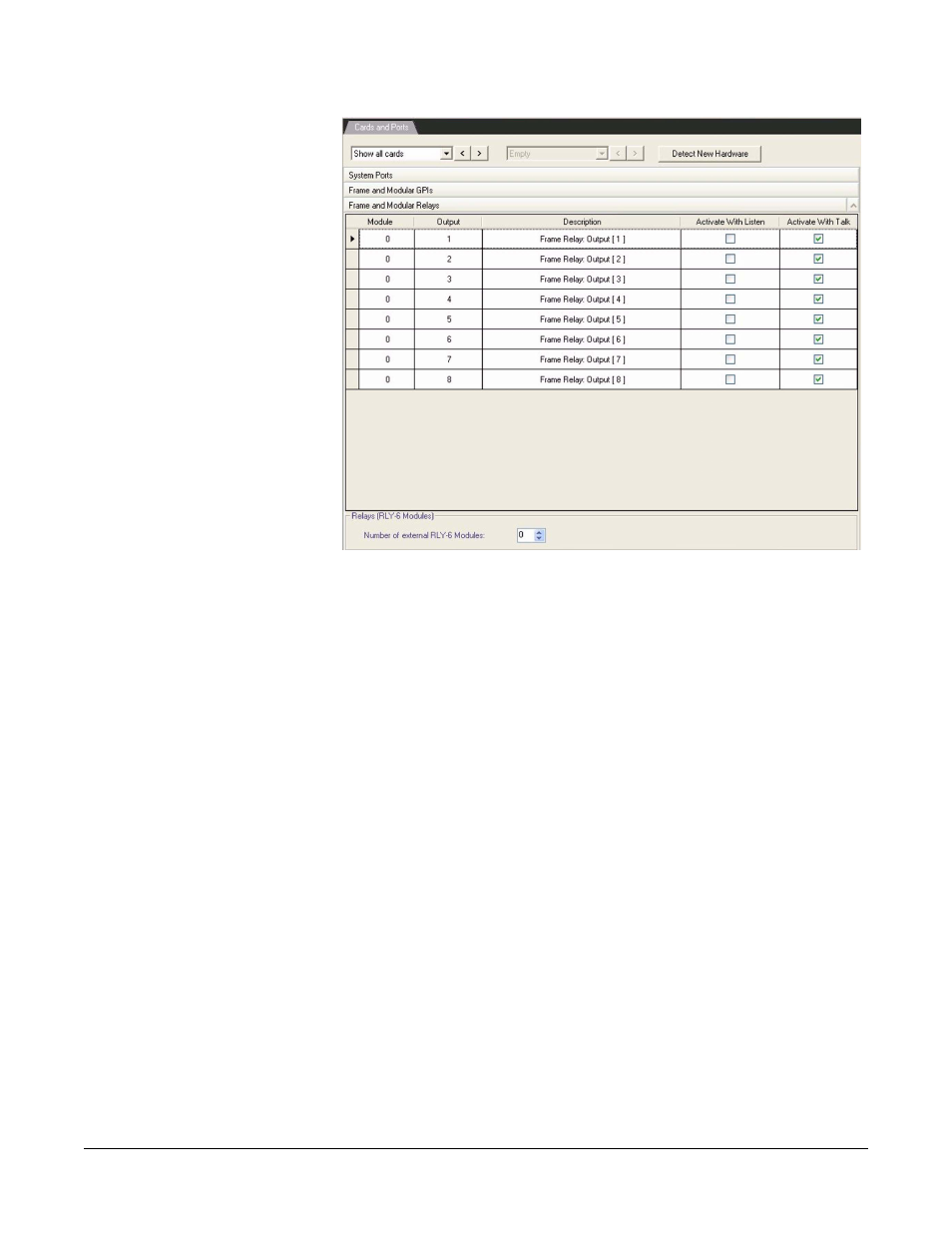

Figure 5-10: Relays Screen
TO OPEN FRAME AND MODULAR RELAYS SCREEN
1. Select the ‘Cards and ports’ link from the Hardware menu
2. Locate and left click the mouse button on the ‘Frame and Modular
Relays’ bar. This operation opens the Frame and Modular Relays
screen as above.
ADDING RLY-6 MODULES
1. Open the Frame and Modular Relays screen in the above way.
2. Left click the mouse button on the up arrow next to the RLY-6
counter.
3. The new module will be added to the display using the next
available module number and six new outputs will be added
numbered 1 - 6.
REMOVING RLY-6 MODULES
1. Open the Frame and Modular Relays screen in the above way.
2. Left click the mouse button on the down arrow next to the RLY-6
counter.
3. The relay module with the highest module number will be removed
from the list and the GPOs deleted.
