88 Naming & Configuring Your Motion Axis
You can also right click on the Motion Group and select New Axis and the
type of axis tag you want to create from the menu.

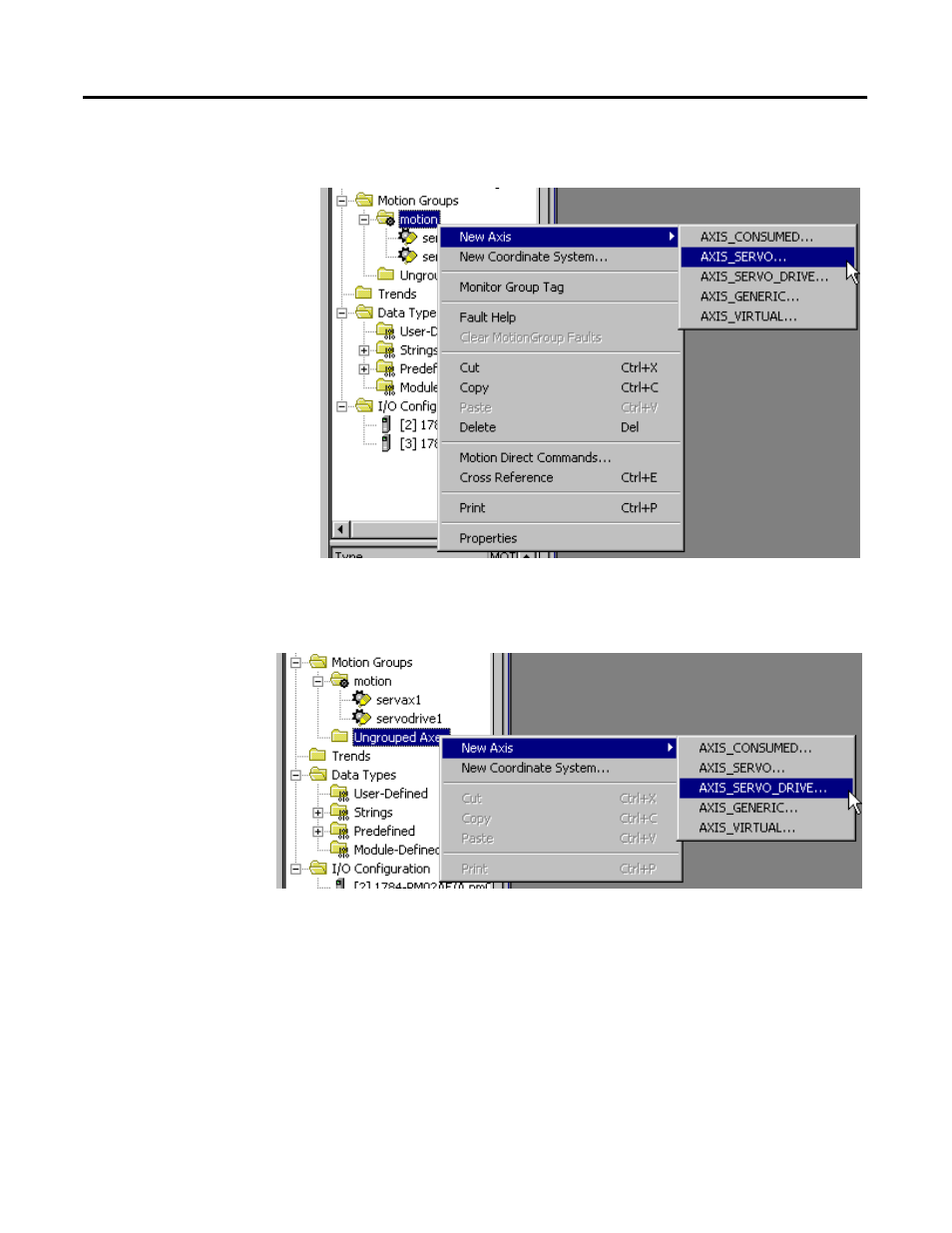

Figure 6.2 Naming an Axis From Motion Group
You can also initiate a new axis by right clicking on Ungroup Axes and
selecting the type of axis you want to create.
Figure 6.3 Naming an Axis From Ungrouped Axes
