Motion Object Attributes 387
Auxiliary Dual Command Servo The Motor Dual Command Servo configuration provides full position servo
control using only the motor mounted feedback device to provide position
and velocity feedback. Unlike the Motor Position Servo configuration,
however, both command position and command velocity are applied to the
loop to provide smoother feedforward behavior. This servo configuration is a
good choice in applications where smoothness and stability are important as
well as positioning accuracy. Note, that the motor mounted feedback device is
still required to provide motor position information necessary for
commutation. Synchronous input data to the servo loop includes Position
Command, Velocity Command, and Velocity Offset. These values are updated
at the coarse update rate of the associated motion group. The Position and
Velocity Command values are derived directly from the output of the motion
planner, while the Velocity Offset value is derived from the current value of
the corresponding attributes. The velocity offset attribute may be changed
programmatically via SSV instructions or direct Tag access which, when used
in conjunction with future Function Block programs, provides custom “outer”
control loop capability.

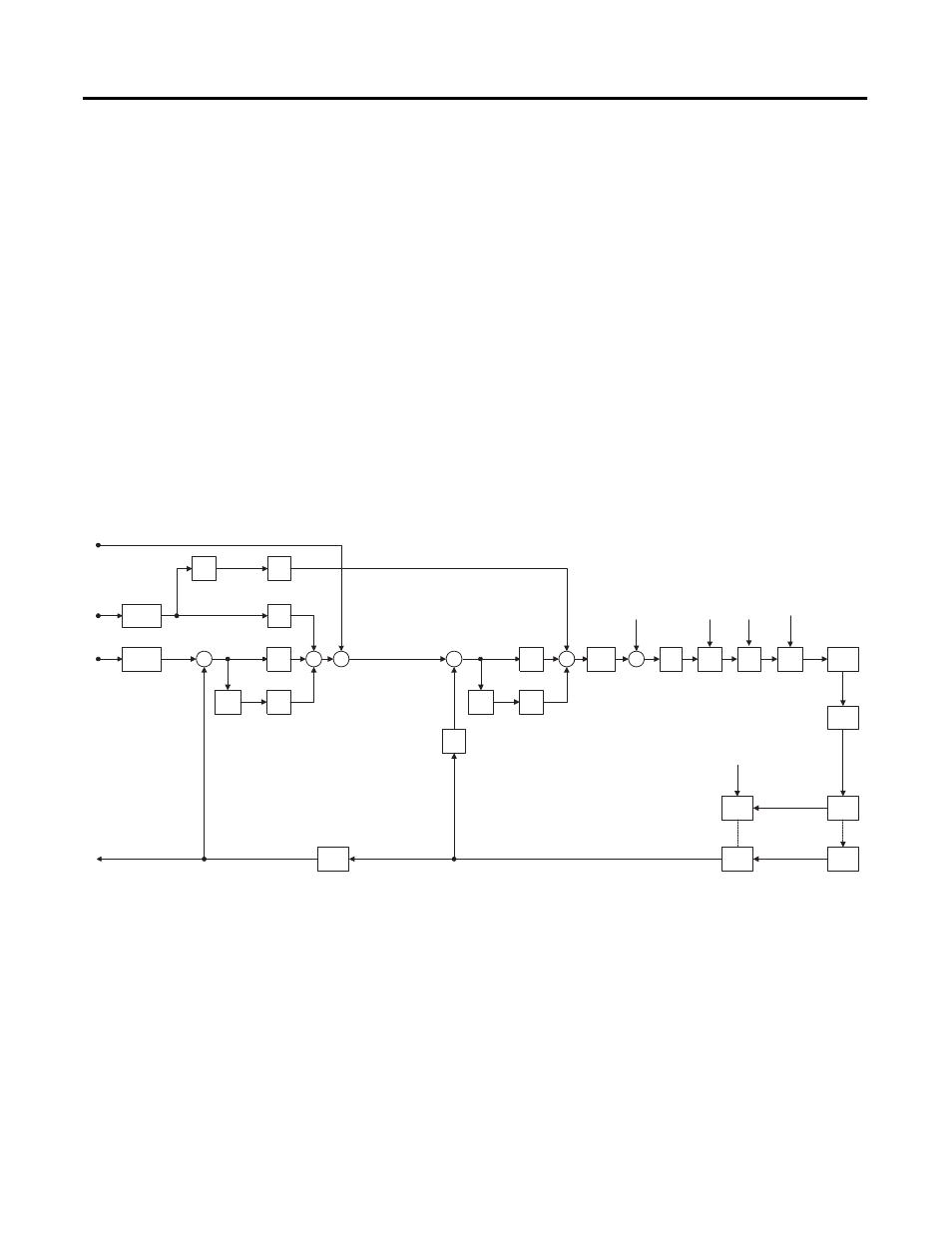

Figure 13.22 Auxiliary Dual Command Servo
