Adding and Configuring Your 1784-PM02AE Motion Module 51
9. This screen lets you associate an axis with the module. Make the
appropriate choices for your application. At this point, the rest of the
screens are informational only and it would be best to press the Finish
button to create the module.
All of the above screens can be accessed and edited by going to the tabbed
Module Property screens. Further explanations of the fields in this dialog are
detailed below.
Editing Your Motion Module
Settings The following section provides explanations of the Motion Module Properties
screens. Use these screens to edit the properties of the module when changes
need to be made. You can access the Module Properties screen by highlighting
the motion module and right clicking the mouse.
Select Properties from the displayed pop-up menu screen as shown in the
following figure.

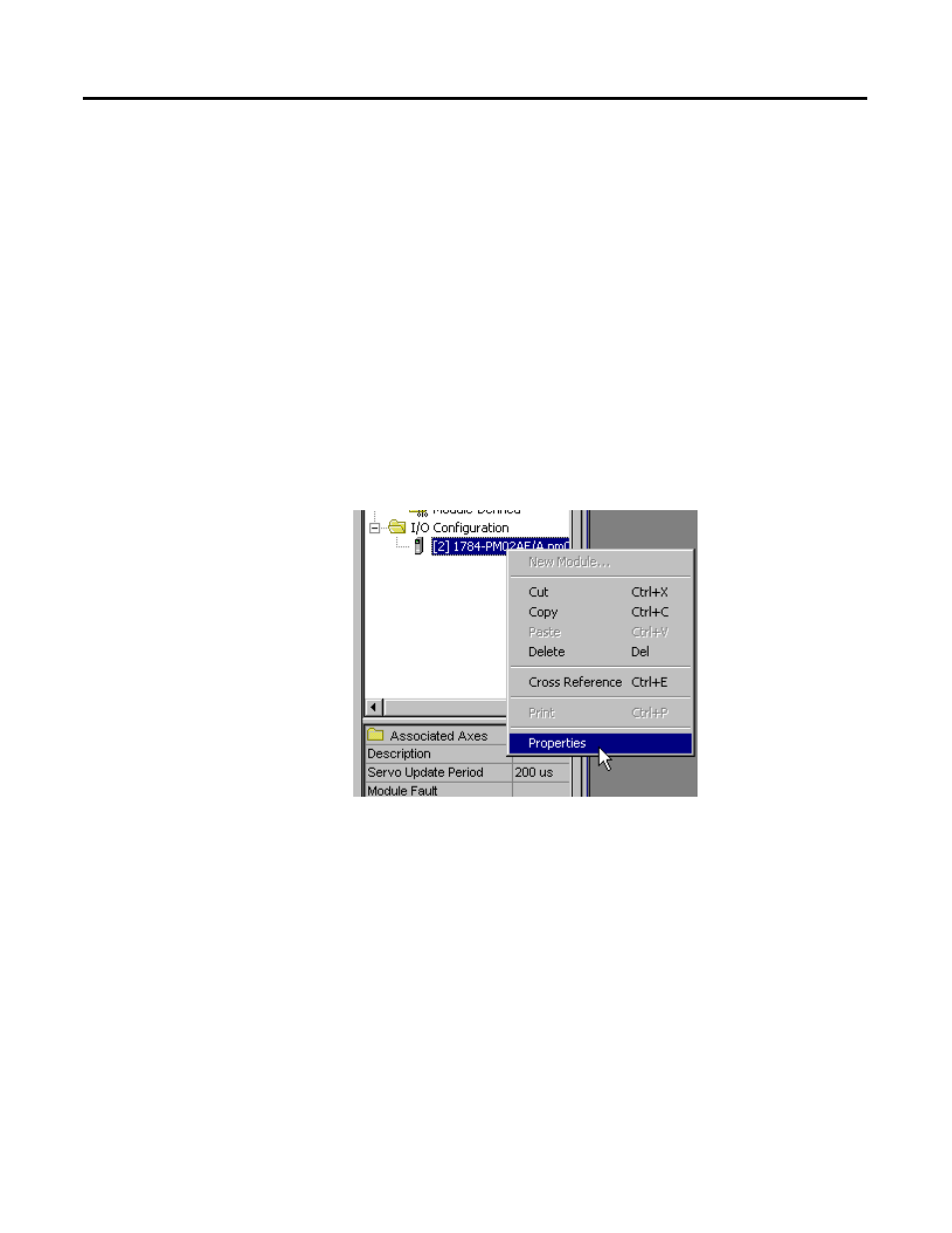

Figure 3.7 Controller Organizer - Module Properties Pop up
