Publication 1784-UM003A-EN-P – June 2003
238 Configuring an 8720MC Drive
OR
1. Right click on the selected or 1784-PM16SE module in the I/O
Configuration branch of the Controller Organizer.
2. Select New Module from the pop up menu.

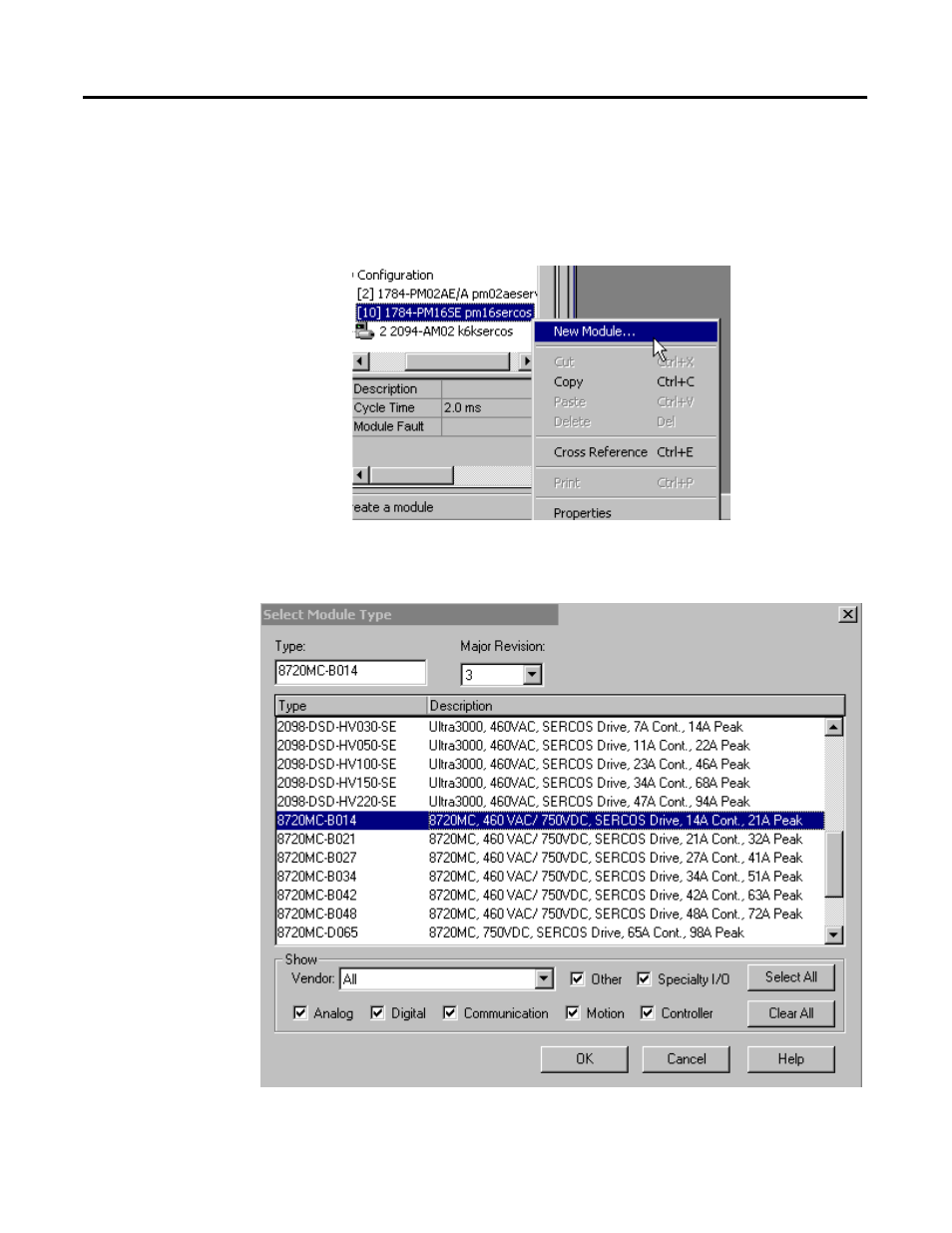

Figure 11.2 New Module Selection from Pop Up Menu
The Select Module Type dialog displays.
Figure 11.3 Select Module Type Window
