50 Adding and Configuring Your 1784-PM02AE Motion Module

7. Press the Next button to proceed to the next Create Wizard screen.

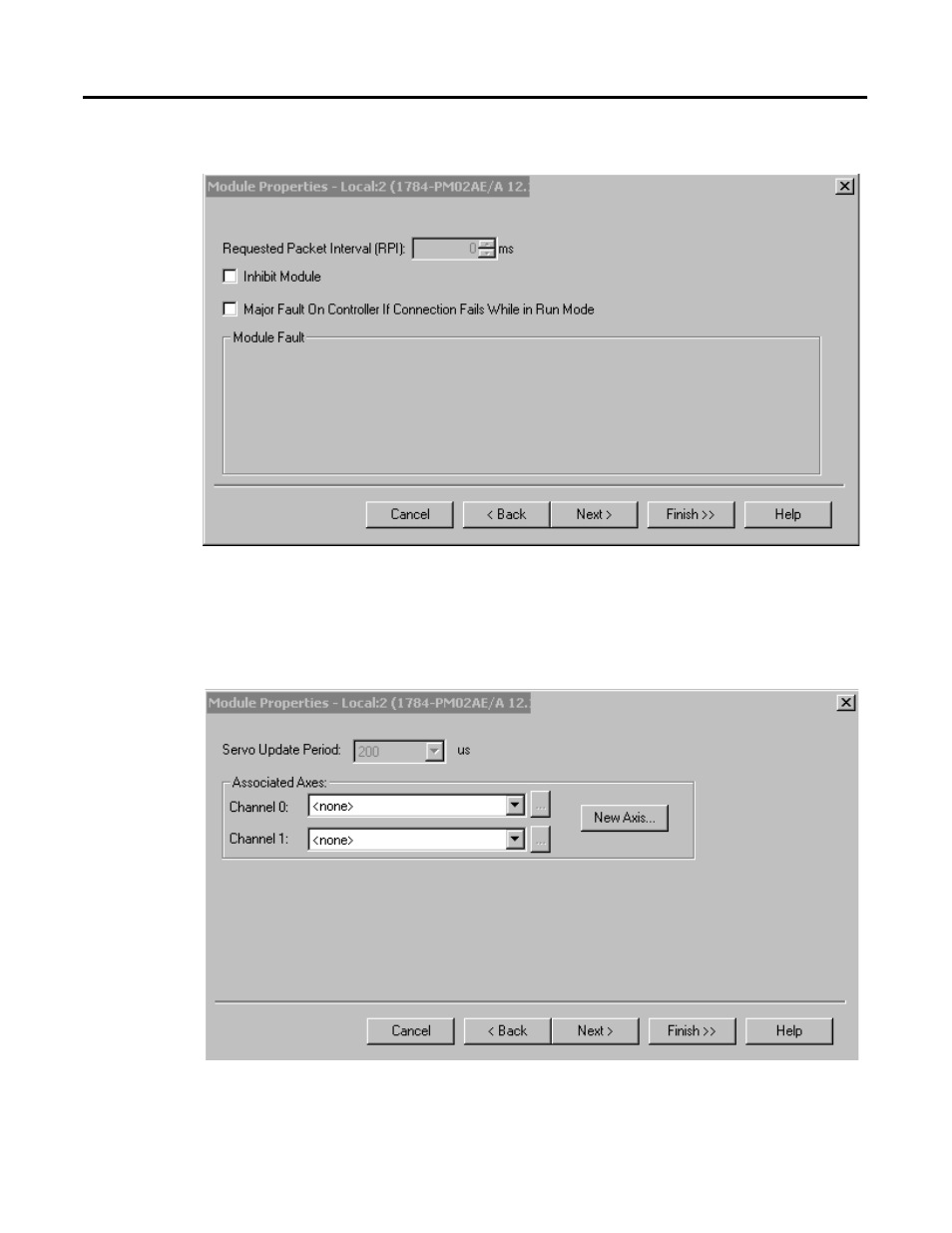

Figure 3.5 Module Properties Wizard - Fault Handling

8. This screen is where you determine how faults are to be handled. The

choices are to inhibit module or to configure the module so that a loss
of connection to this module causes a major fault. Make your entries
and press the Next button to proceed to the next wizard screen.

Figure 3.6 Module Properties Wizard - Servo Update/Associated Axis
