79 Publication 1784-UM003A-EN-P – June 2003
Chapter
5
The Motion Group
Creating A Motion Group Each .acd program must have one motion group. (There can be only one.) You
must create it before an axis can be assigned to the group and have it function
within the .acd program.
To create the motion group, right click on Motion Group and select New
Motion Group from the drop down menu.

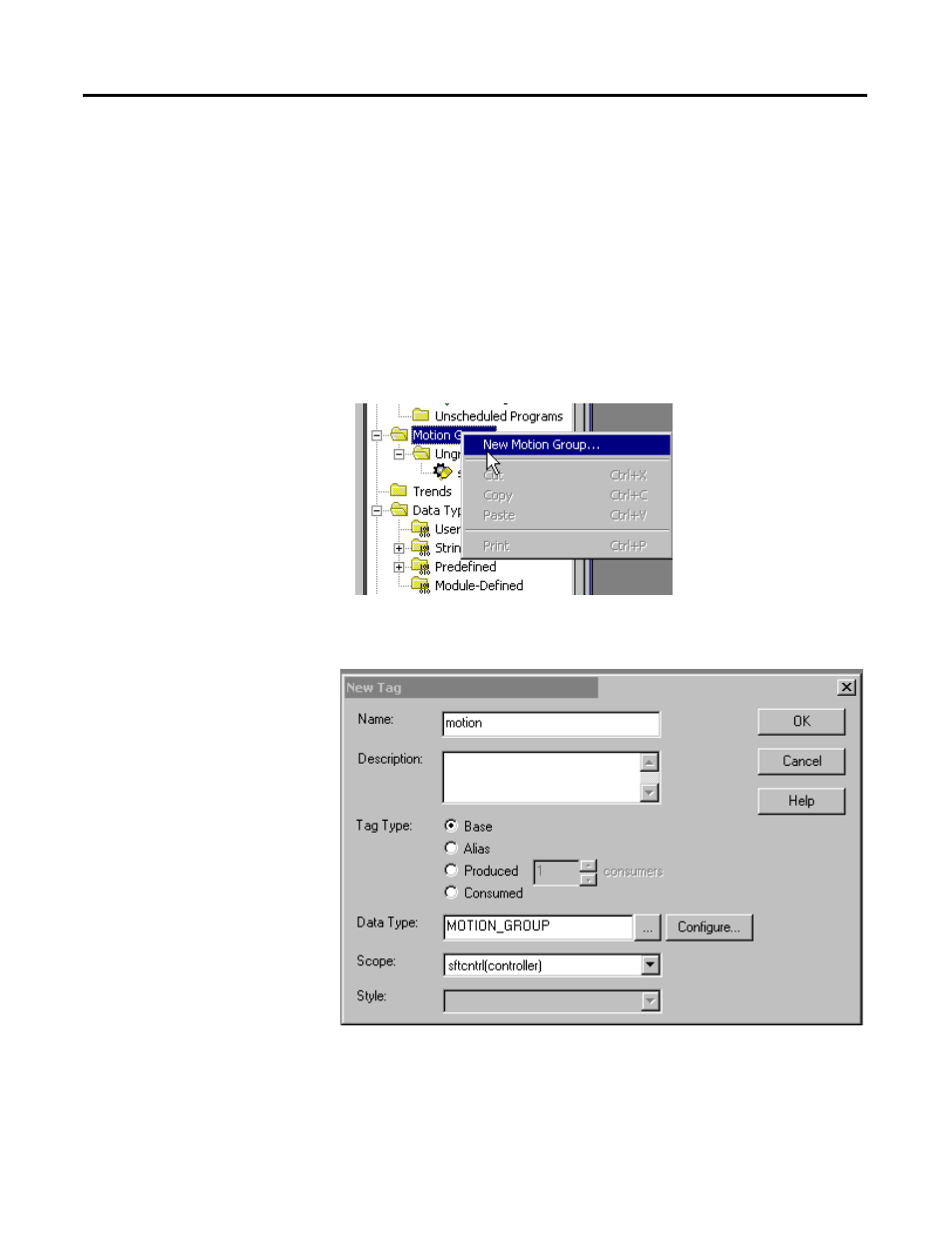

Figure 5.1 Controller Organizer - New Motion Group Pop-up
This calls the New Tag window.
Figure 5.2 New Tag Dialog
1. Enter a name for the Motion Group in the Name field.
2. In the Description field, enter a description of the tag.
