186 Creating & Configuring Your Coordinate System Tag
Dynamics Tab Manual Adjust At this screen you can make changes to the Vector and Position Tolerance
values. See the explanations for the Vector and Position Tolerance fields in the
explanation of the Dynamics Tab earlier in this chapter.

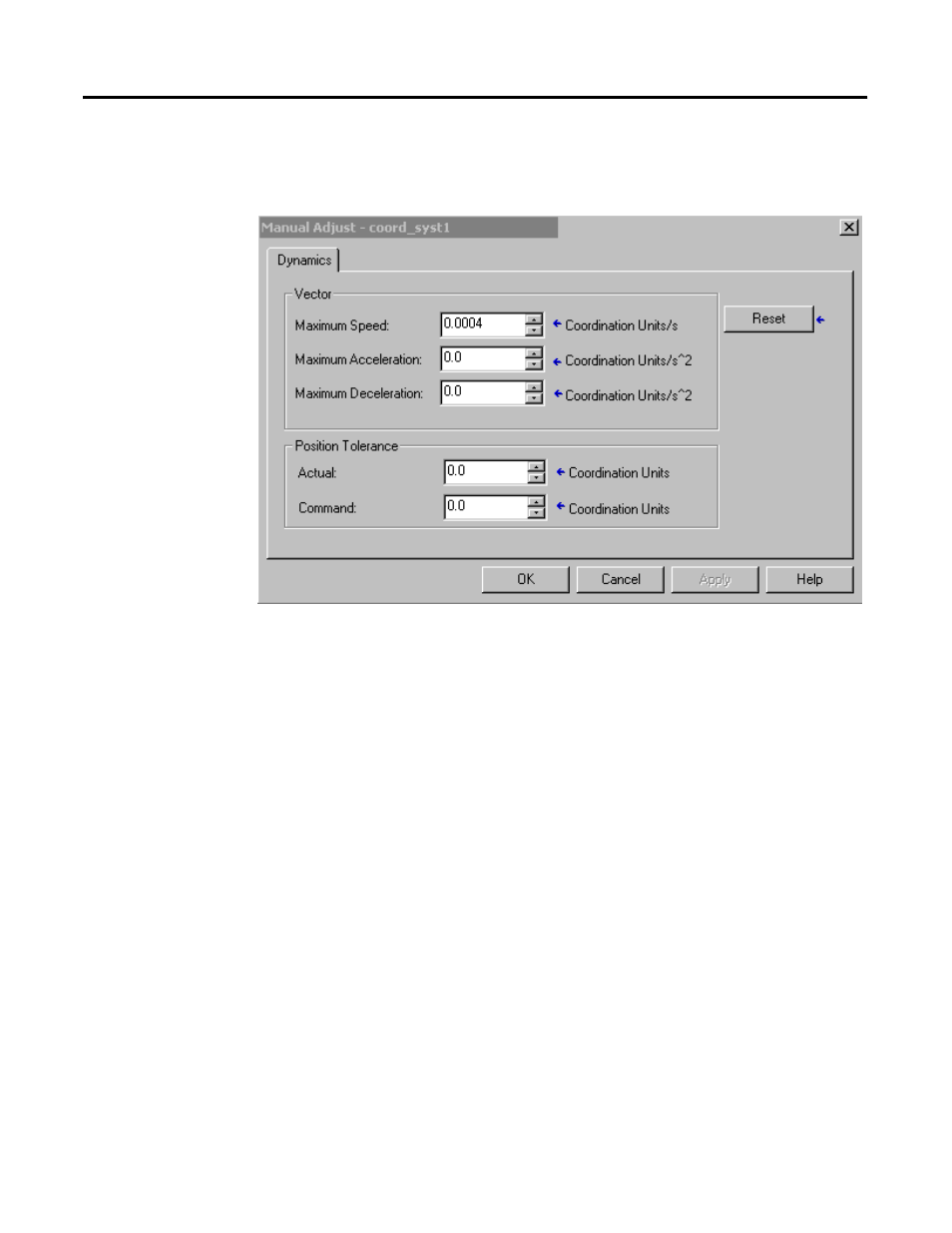

Figure 7.9 Coordinate System Properties - Manual Adjust Screen of Dynamics Tab
These changes can be made either on or off line. The blue arrows to the right
of the fields indicate that they are immediate commit fields. This means that
the values in those fields are immediately updated to the controller if on-line or
to the project file if off line.
Reset Button
The Reset Button reloads the values that were present at the time this dialog
was entered. The blue arrow to the right of the Reset button means that the
values are immediately reset when the Reset button is clicked.
