Configuring an 8720MC Drive 247
Power Tab - 8720MC Drive
Use this tab to select a bus regulator for your drive module.

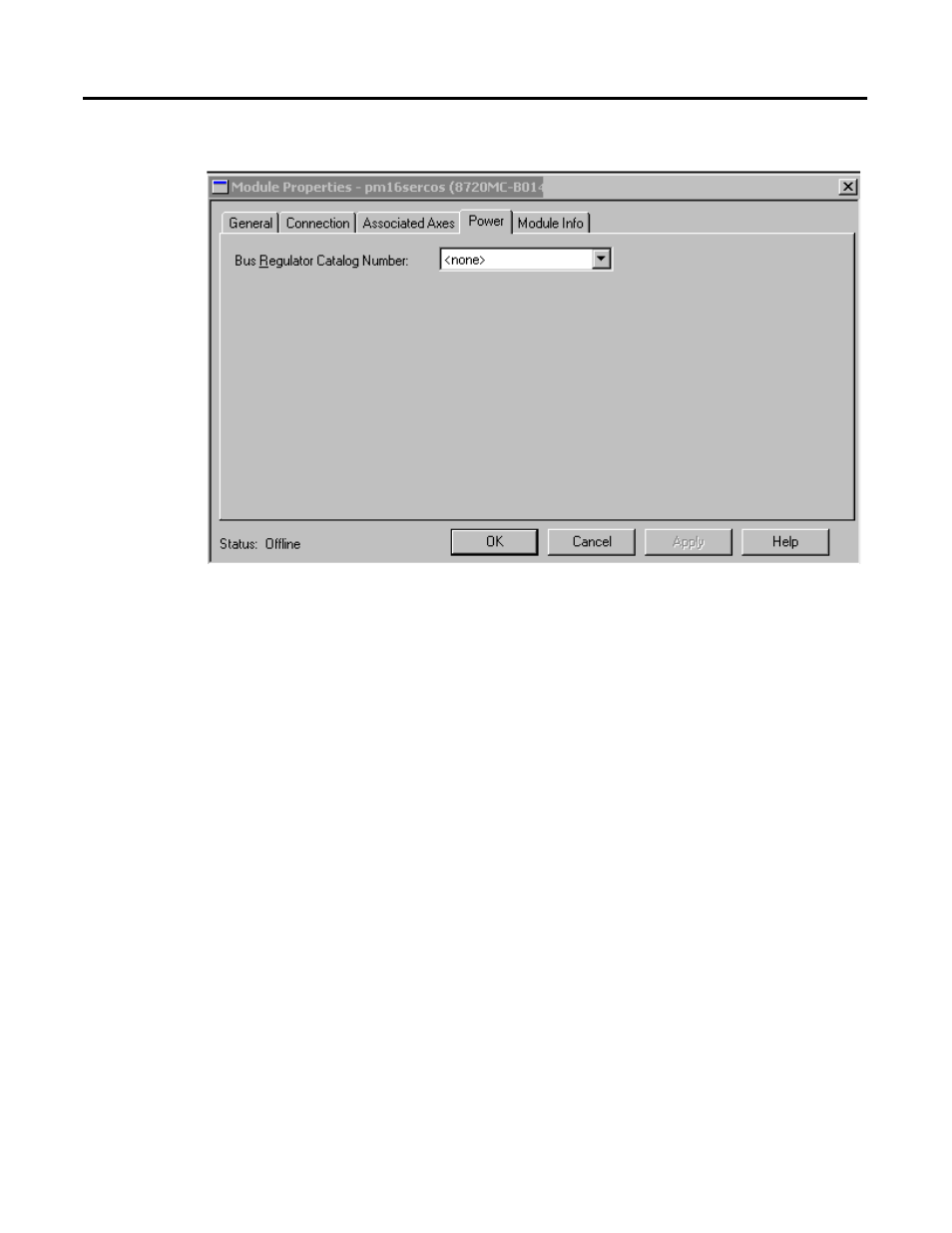

Figure 11.9 Module Properties - Power Tab
Note: The Power Tab does not apply to the 8720MC SERCOS drives.
Bus Regulator ID
Note: This parameter does not apply to the 8720MC SERCOS drives.
The only available selection in the pull-down menu is
