Manual adjust – Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 159
Publication 1784-UM003A-EN-P – June 2003
Naming & Configuring Your Motion Axis 151
Manual Adjust
Click on this button to open the Limits tab of the Manual Adjust dialog for
online editing of the Position Error Tolerance, Position Lock Tolerance, and
Output Limit parameters.

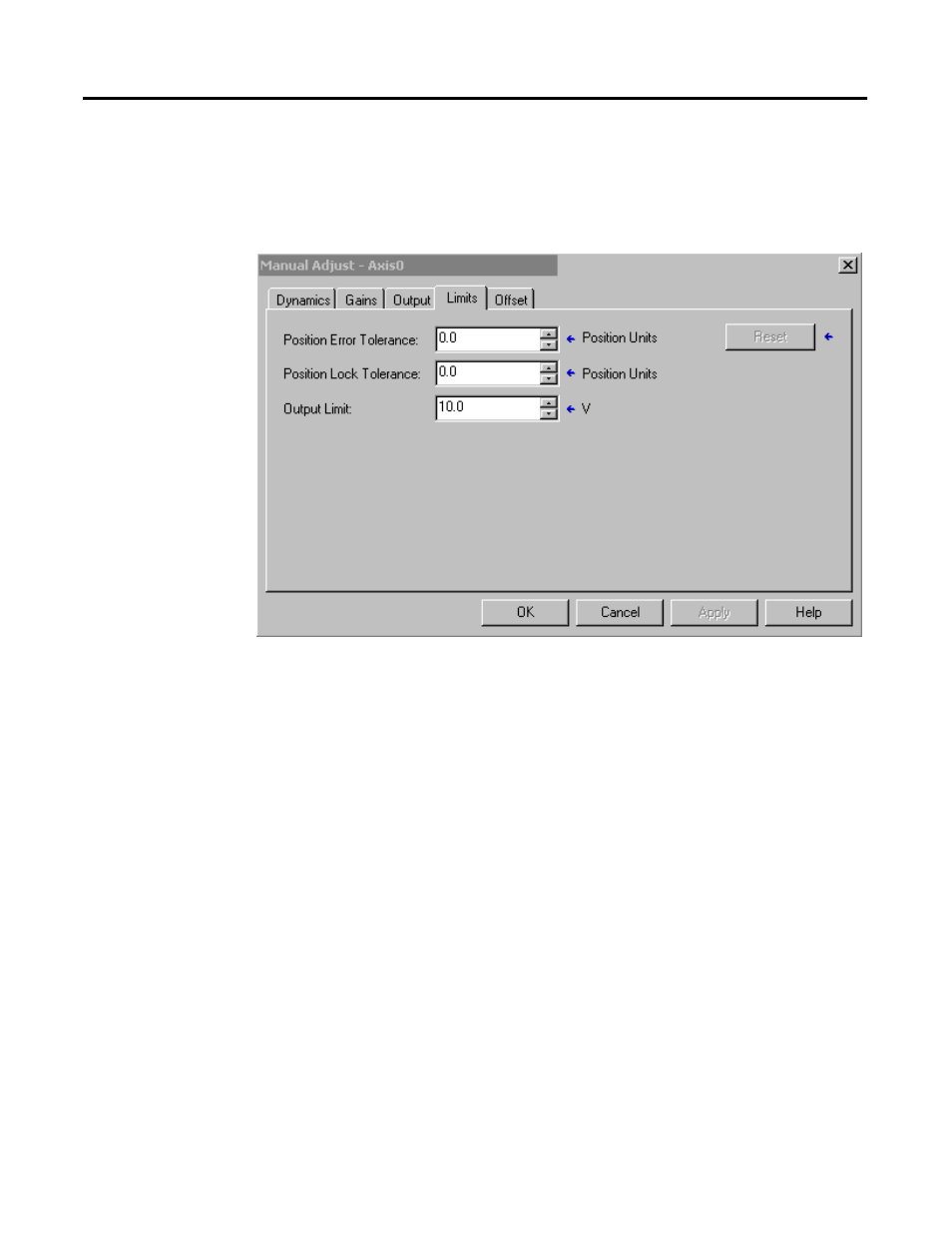

Figure 6.36 Axis Properties - Limits Tab Manual Adjust Screen for Axis_Servo
Note: The Manual Adjust button is disabled when RSLogix 5000 is in
Wizard mode, and when offline edits to the above parameters have not
yet been saved or applied.
