Publication 1784-UM003A-EN-P – June 2003
66 Configuring the1784-PM16SE Card
SERCOS interface Motion
Card Overview The 1784-PM16SE SERCOS interface motion card has been added. To edit
the 1784-PM16SE card properties, go to the I/O Configuration organizer and
right click on the 1784-PM16SE card and select Properties from the drop
down menu. The tabbed Module Properties screen displays.

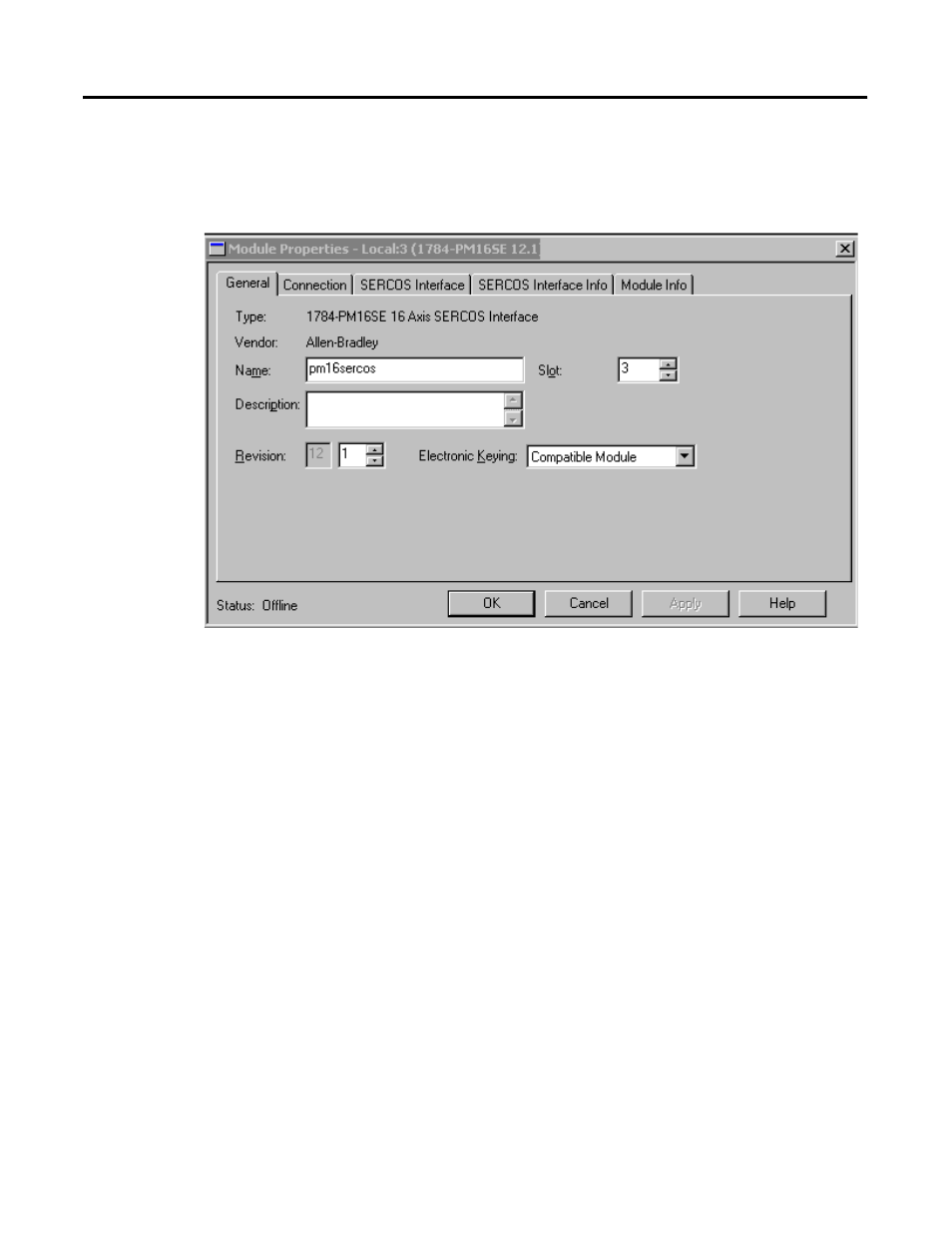

Figure 4.7 Module Properties - General Tab
The Module Properties screen has the following tabs:
• The General tab references the 1784-PM16SE motion card.
• The Connection tab references the connection of the card to the
controller.
• The SERCOS Interface tab is for configuring SERCOS communication
settings for the 1784-PM16SE motion card.
• The SERCOS Interface Info tab is used to monitor the status of the
SERCOS communication ring.
• The Module Info tab, when Online, displays the current condition of
the module.
• The Backplane tab, when Online, displays diagnostic information about
the module’s communication over the backplane and the chassis in
which it is located.
