Publication 1784-UM003A-EN-P – June 2003
54 Adding and Configuring Your 1784-PM02AE Motion Module
When you insert a module into a slot in a ControlLogix chassis, RSLogix 5000
compares the following information for the inserted module to that of the
configured slot:
• Vendor
• Product Type
• Catalog Number
• Major Revision
• Minor Revision
This feature prevents the inadvertent insertion of the wrong module in the
wrong slot.
Connection Tab The Connection Tab is used to define controller to module behavior. This is
where you select a requested packet interval, choose to inhibit the module,
configure the controller so loss of the connection to this module causes a
major fault, and view module faults.

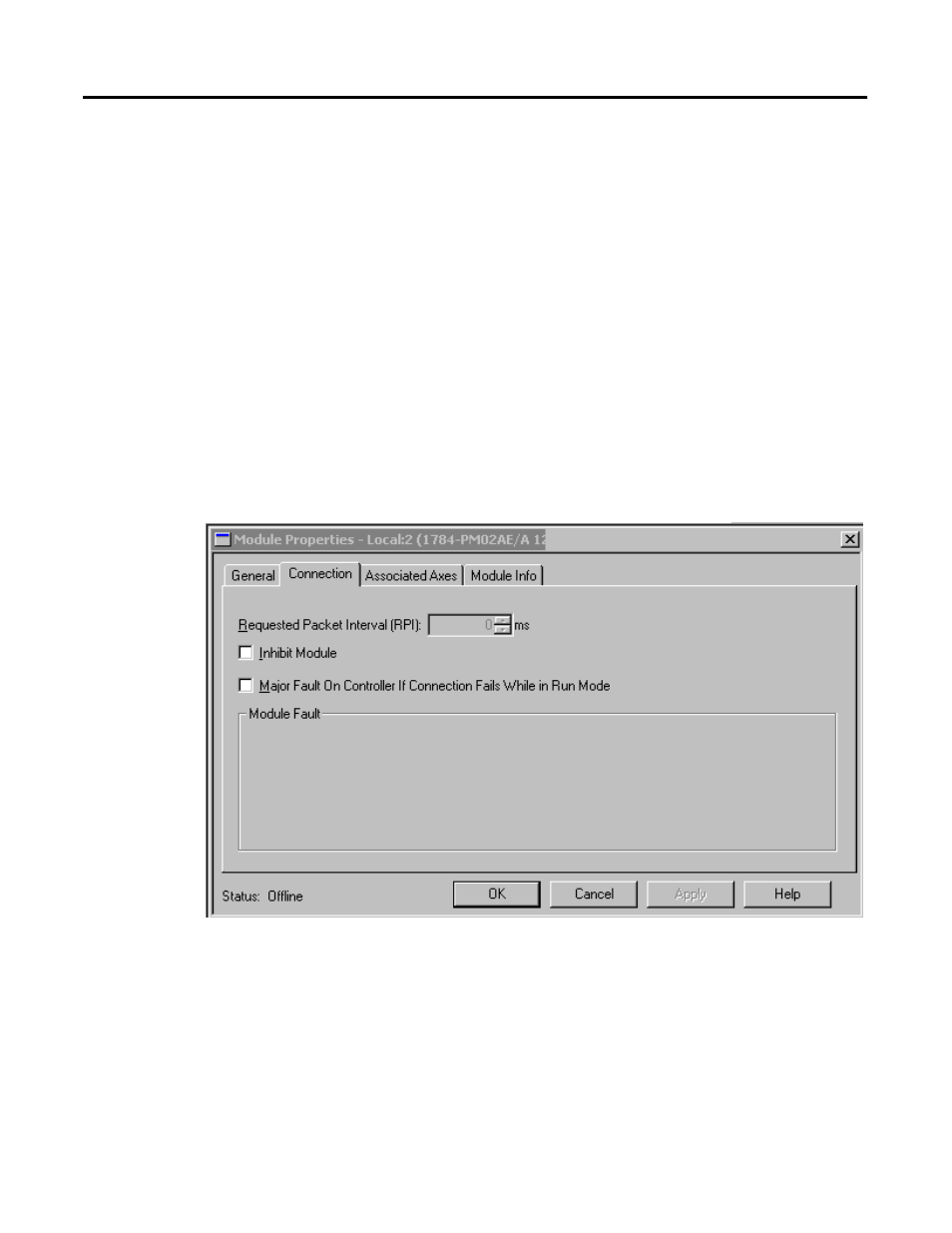

Figure 3.9 Module Properties - Connection Tab
The data on this tab comes directly from the controller. This tab displays
information about the condition of the connection between the module and
the controller.
Requested Packet Interval
This does not apply to motion modules.
