Publication 1784-UM003A-EN-P – June 2003

36 SoftLogix Controller

Redundancy Tab

The Redundancy Tab is only present if the specified processor type and
version supports the Redundancy feature. This tab supports the configuration
for redundancy.

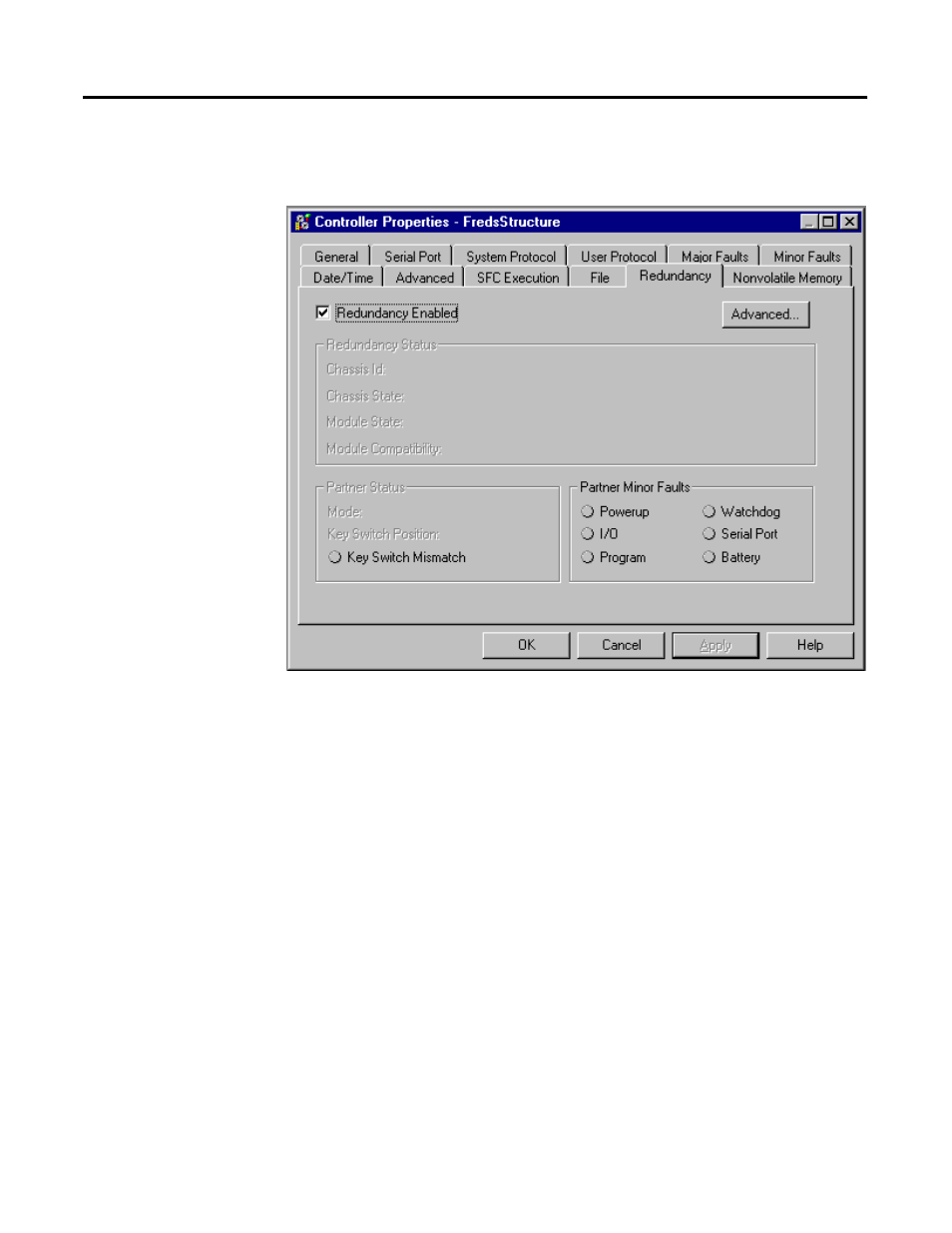

Figure 2.14 Controller Properties Redundancy Tab

Redundancy Enabled

This checkbox lets you select whether to enable the redundancy feature or not.
It can only be selected when the Controller is offline. When it is on-line it
provides a valid indication of the redundancy enabled selection.

Redundancy Status

This section shows the redundancy states.

Chassis ID – Displays the chassis identification.

Chassis State – This shows the redundancy state of the entire chassis. The
possible states include:

0 – Unsupported – also displays when the system is offline.

1 – Undetermined

2 – Primary with Synchronized Secondary

3 – Primary with Disqualified Secondary
