Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 70
Publication 1784-UM003A-EN-P – June 2003
62 Configuring the1784-PM16SE Card
3. The Select Module Type screen displays. Select Clear All. Select Motion.
The list displays only available motion modules.

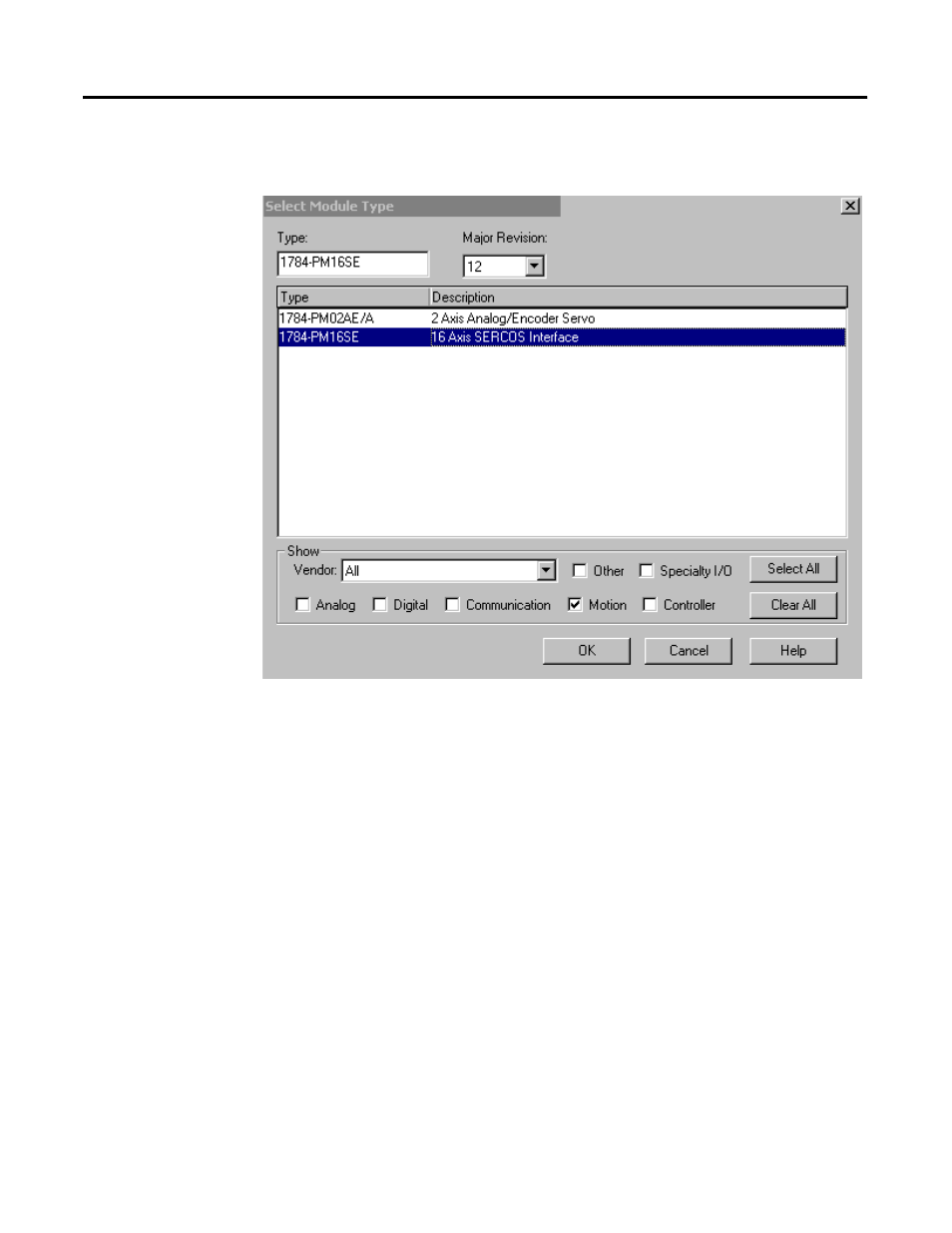

Figure 4.3 Select Module Type Screen with Motion Options - 1784-PM16SE
Selected
4. Select 1784-PM16SE.
5. Press the OK button to close the Select Module Type dialog.
