32 SoftLogix Controller
All of the circular indicators are clear when you are offline.
Advanced Tab
The Advanced tab allows you to view and edit advanced controller properties.

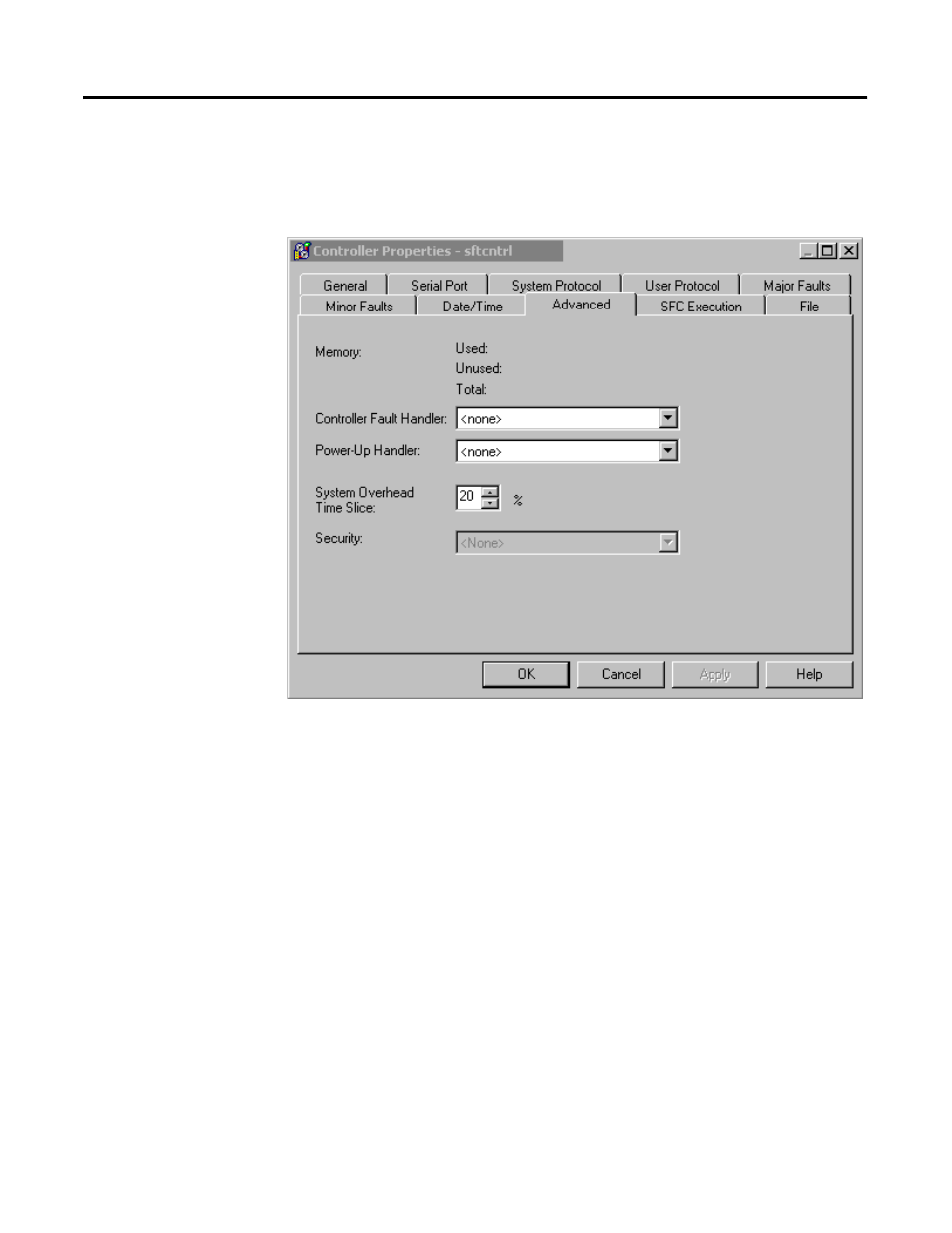

Figure 2.11 Controller Properties Advanced Tab
Memory Used
The amount of memory used in the controller. When offline, this parameter is
empty.
Memory Unused
The amount of memory available in the controller. When offline, this
parameter is empty.
Memory Total
The total amount of memory in the controller (used plus unused). If a memory
daughter card is present, this total includes that memory. When offline, this
parameter is empty.
