Publication 1784-UM003A-EN-P – June 2003

64 Configuring the1784-PM16SE Card

8. The Connection Screen Wizard displays.

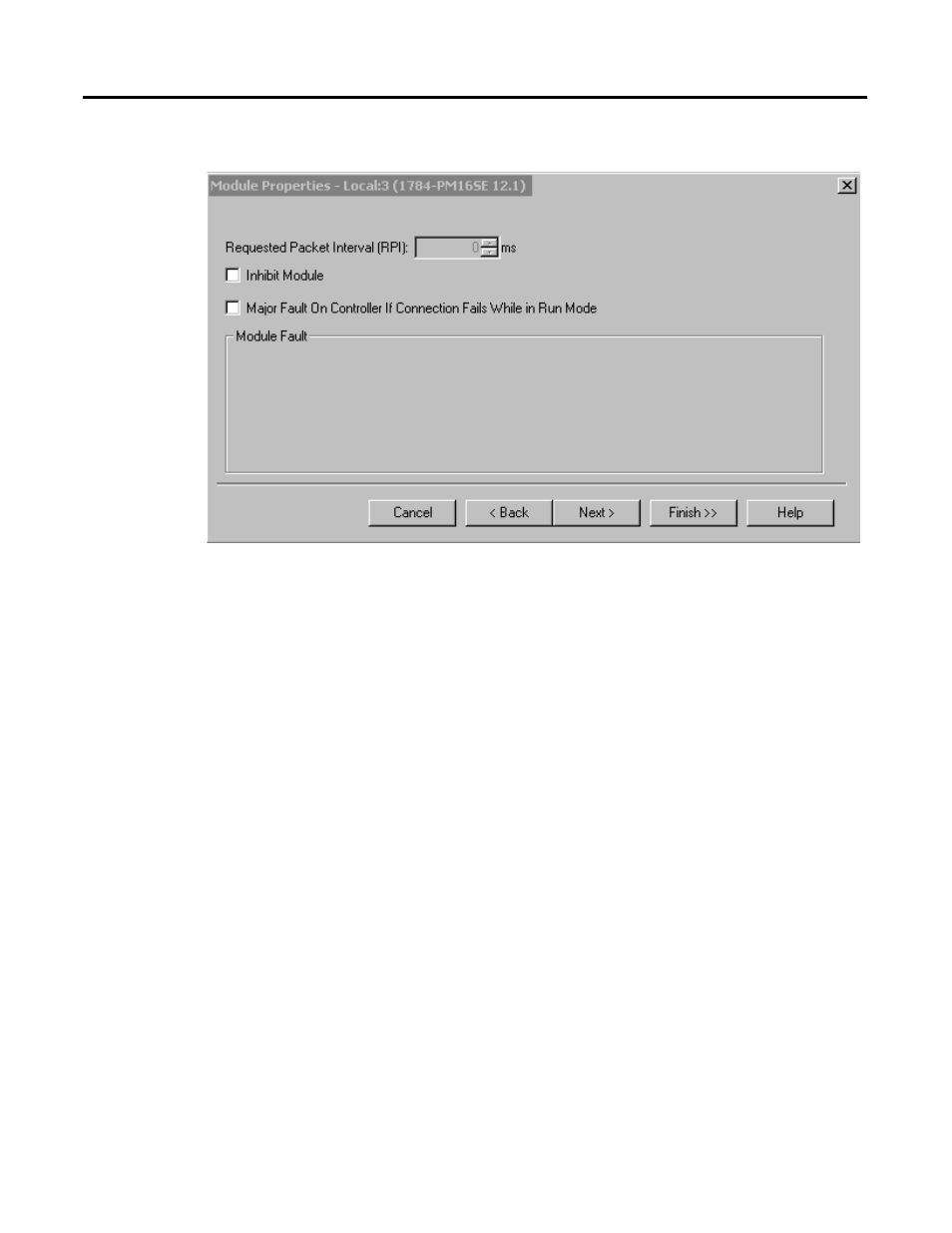

Figure 4.5 Module Properties Wizard Dialog - Connection Screen

9. On this screen there are no required fields but you can enter how you

want to handle connection faults. The Requested Packet Interval (RPI)
field does not pertain to the SERCOS interface cards and is greyed out.

Inhibit Module defaults to Unchecked. Click on the check box to inhibit
the module.

Major Fault on Controller ... check box defaults to uncheck. Click on
the box if you want to check this option. Click on Next> to advance the
SERCOS interface Create Wizard screen.
