Softlogix chassis monitor – Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 15
Publication 1784-UM003A-EN-P – June 2003
The SoftLogix Motion Control System 7
SoftLogix Chassis Monitor
It is at the Chassis Monitor where you can change the processor mode, and
view system status. After you have created and configured the various modules
of your SoftLogix system you can use the Chassis Monitor to display the
virtual chassis where you can monitor the simulated LEDs to view status
information for your modules.

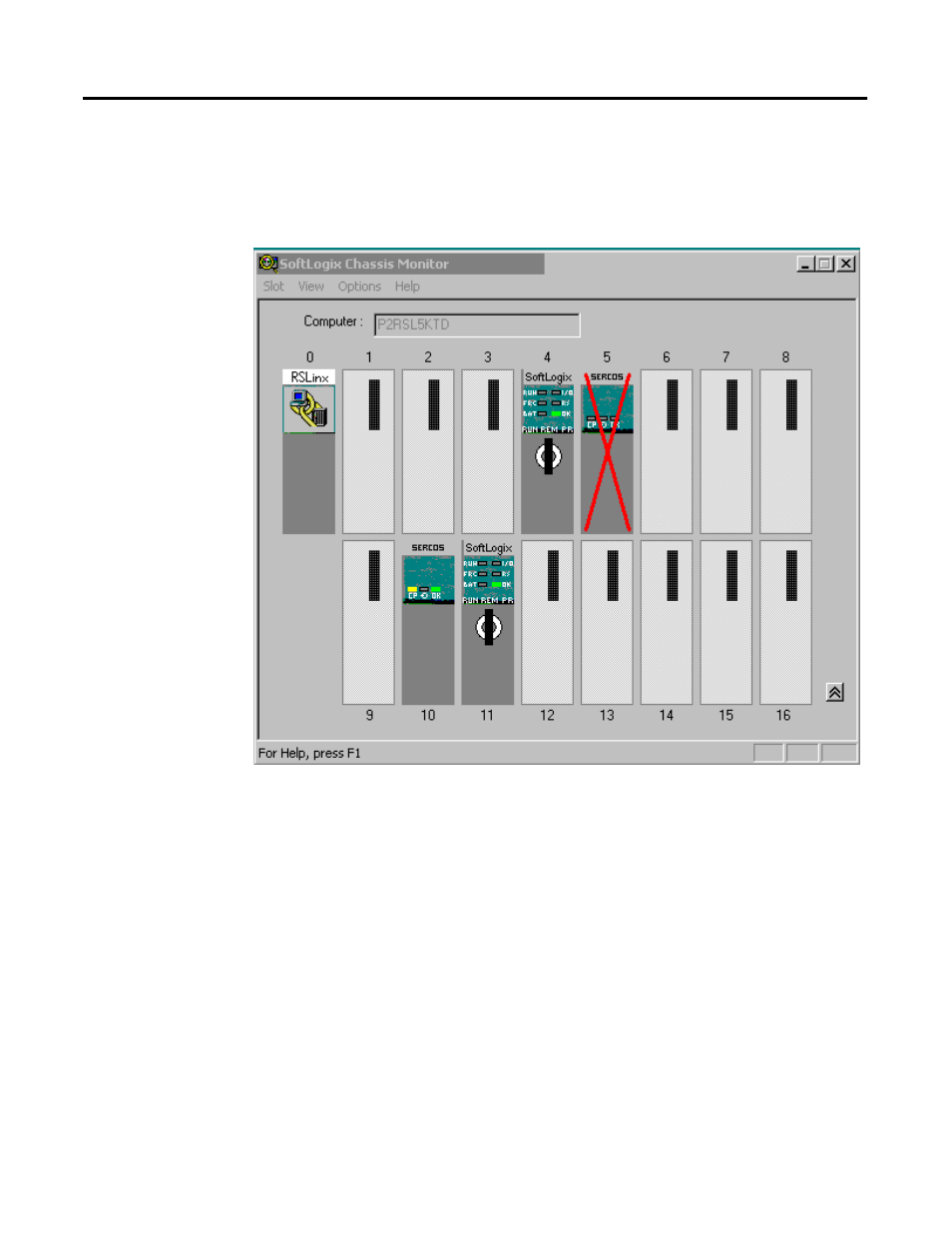

Figure 1.3 SoftLogix Chassis Monitor
