Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 216
Publication 1784-UM003A-EN-P – June 2003
208 Configuring an Ultra 3000 Drive
6. Press the OK button to close the Select Module Type dialog. The Ultra
Drive Create Wizard Module Properties dialog opens.

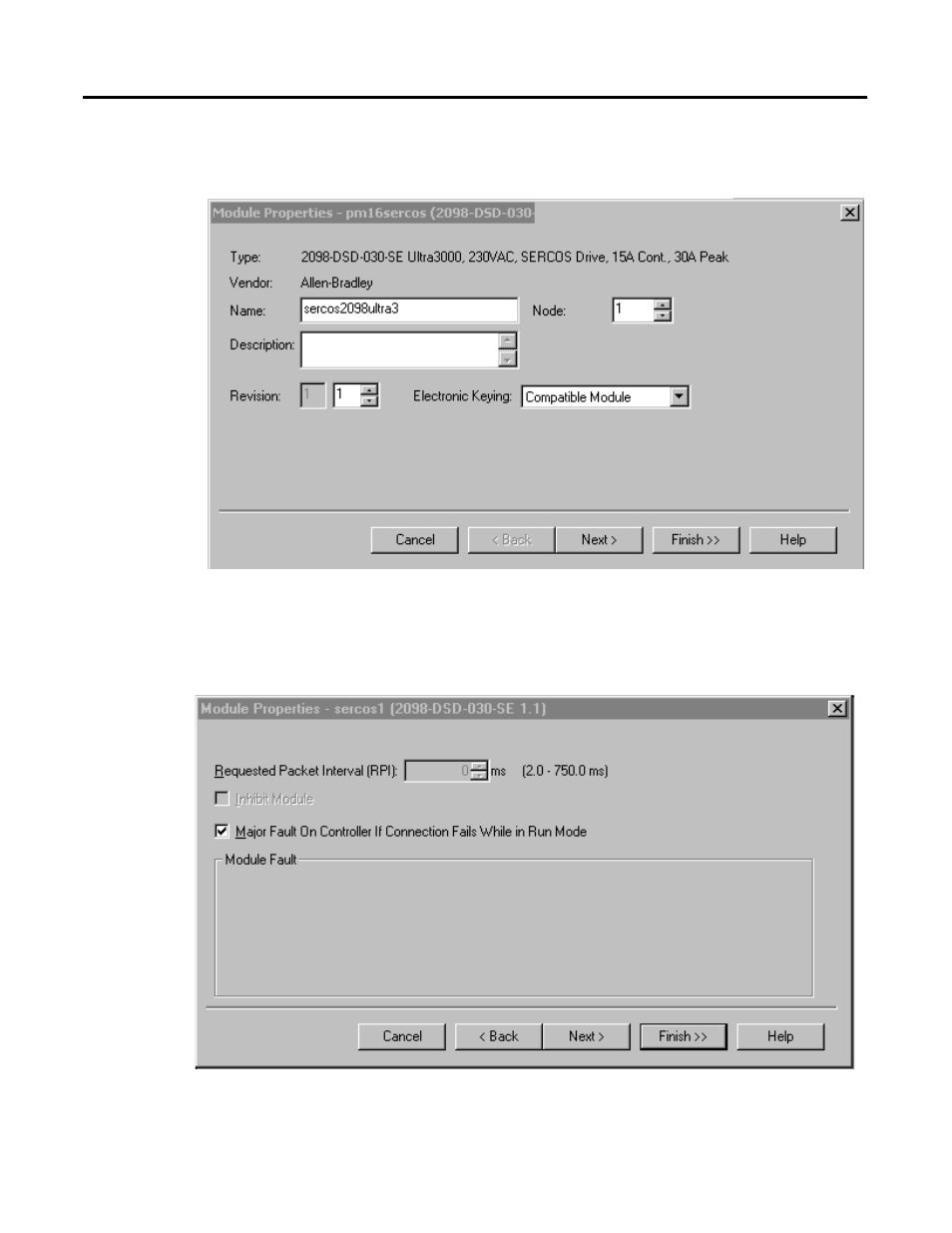

Figure 9.4 Module Properties Wizard Dialog - Naming the Drive
7. You must fill in a name for the drive; this is a required field. Fill in the
responses for the other parameters as needed, then click the Next>
button to advance to the next wizard screen.
Figure 9.5 Module Properties Wizard Dialog - Connection
