Publication 1784-UM003A-EN-P – June 2003
20 SoftLogix Controller
Serial Port Tab
The Serial Port tab allows you to view and configure the controller’s serial port.

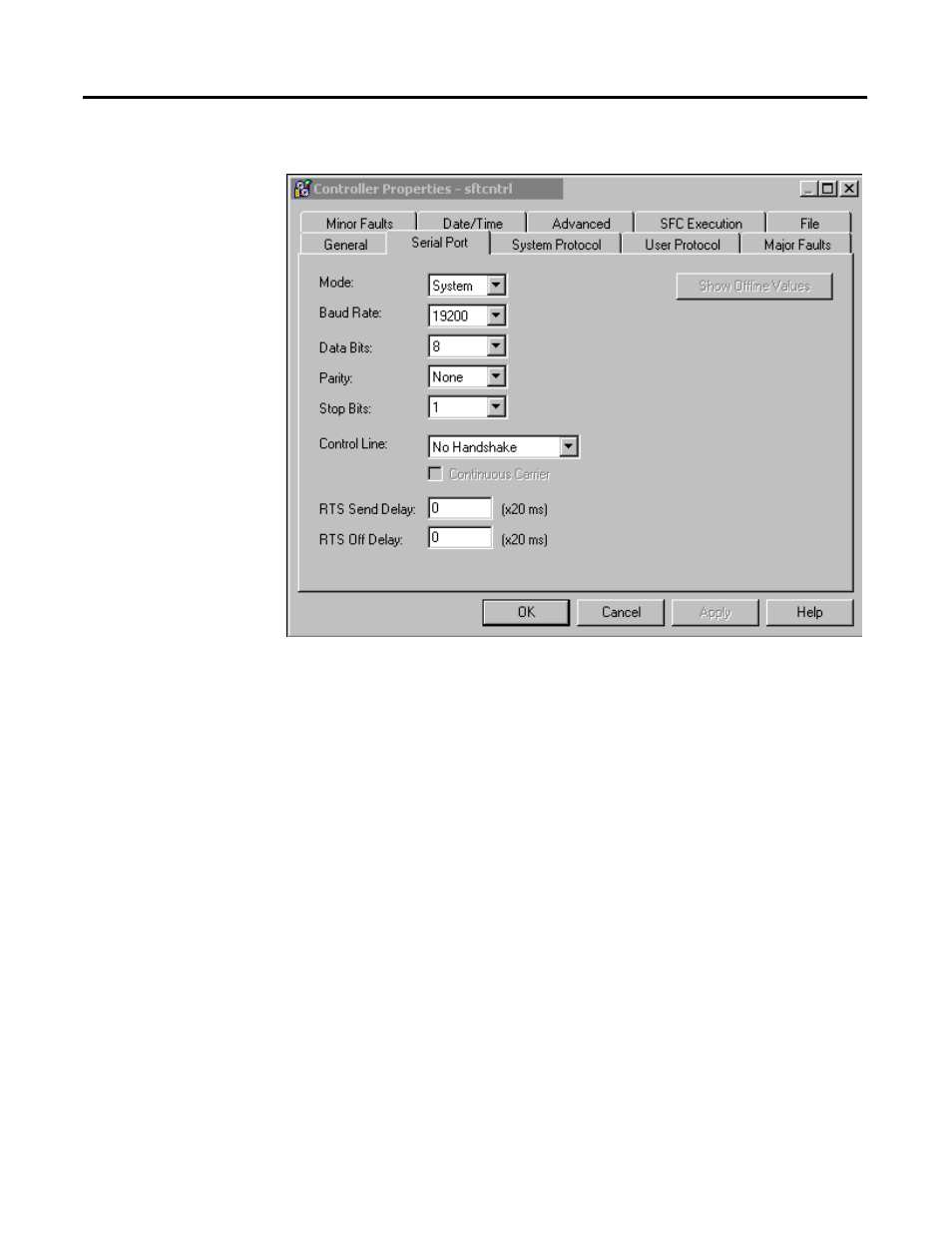

Figure 2.5 Controller Properties Serial Port Tab
Mode
The type of protocol you want to use. Choose from System or User (default).
Baud Rate
The baud rate assigned to the serial port on the Logix5550. Choose from 110,
300, 600, 1200, 2400, 4800, 9600, 19200 (default), and 38,400.
Data Bits
The actual number of bits of data per character. Choose from 7 (ASCII only)
or 8 (default).
Parity
The parity for the link. Choose from Even, Odd (ASCII only) or No Parity
(default).
