Publication 1784-UM003A-EN-P – June 2003

The Motion Group 83

Axis Assignment Tab

The Axis Assignment screen is where axes are either assigned or unassigned to
the Motion Group. When RSLogix 5000 software is online, all attributes on
this dialog transition to a read-only state. When an attribute transitions to a
read-only state, all pending attribute changes revert back to their offline status.

Unassigned

Lists the axes that are not assigned to any group in the controller.

Assigned

Lists the axes that are assigned to this motion group.

Add

Click on this button to add axes to the motion group.

Remove

Click on this button to remove axes from the motion group.

Attribute Tab

The Attribute tab is used to modify the group attributes.

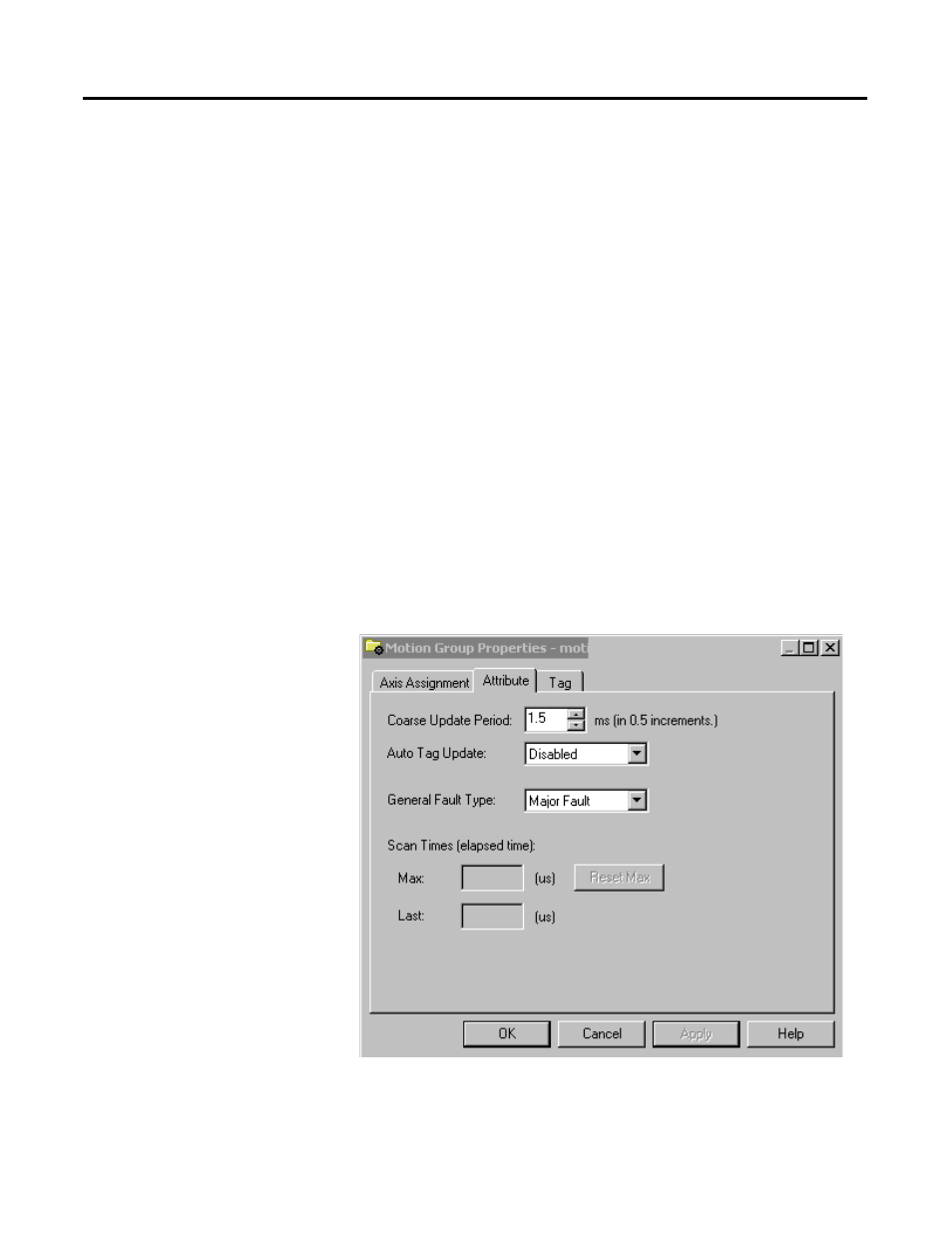

Figure 5.6 Motion Group Properties - Attribute Tab
