Creating & Configuring Your Coordinate System Tag 187
Tag Tab
The Tag Tab is for reviewing your Tag information and renaming the tag or
editing the description.

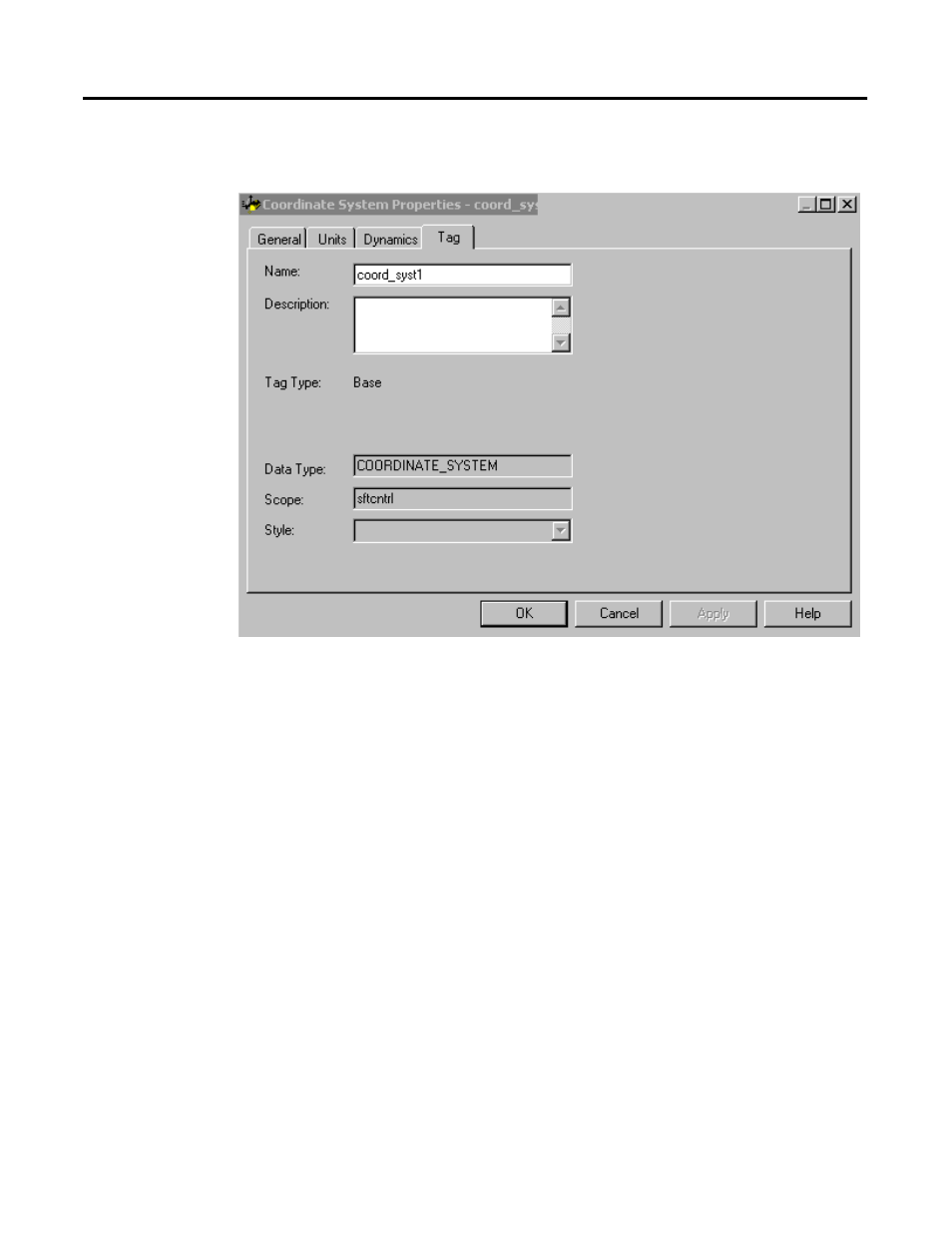

Figure 7.10 Coordinate System Properties - Tag Tab
Use this tab to modify the name and description of the coordinate system.
When you are online, all of the parameters on this tab transition to a read-only
state, and cannot be modified. If you go online before you save your changes,
all pending changes revert to their previously-saved state.
Name
Displays the name of the current tag. You can rename the tag at this time. The
name can be up to 40 characters and can include letters, numbers, and
underscores (_). When you rename a tag, the new name replaces the old one in
the Controller Organizer after click on the OK or Apply button.
Description
Displays the description of the current tag, if any is available. You can edit this
description. The edited description replaces the existing description when you
click on either the OK or Apply button.
