Power Tab - Ultra Drive

Use this tab to select a bus regulator for your Ultra 3000 drive module.

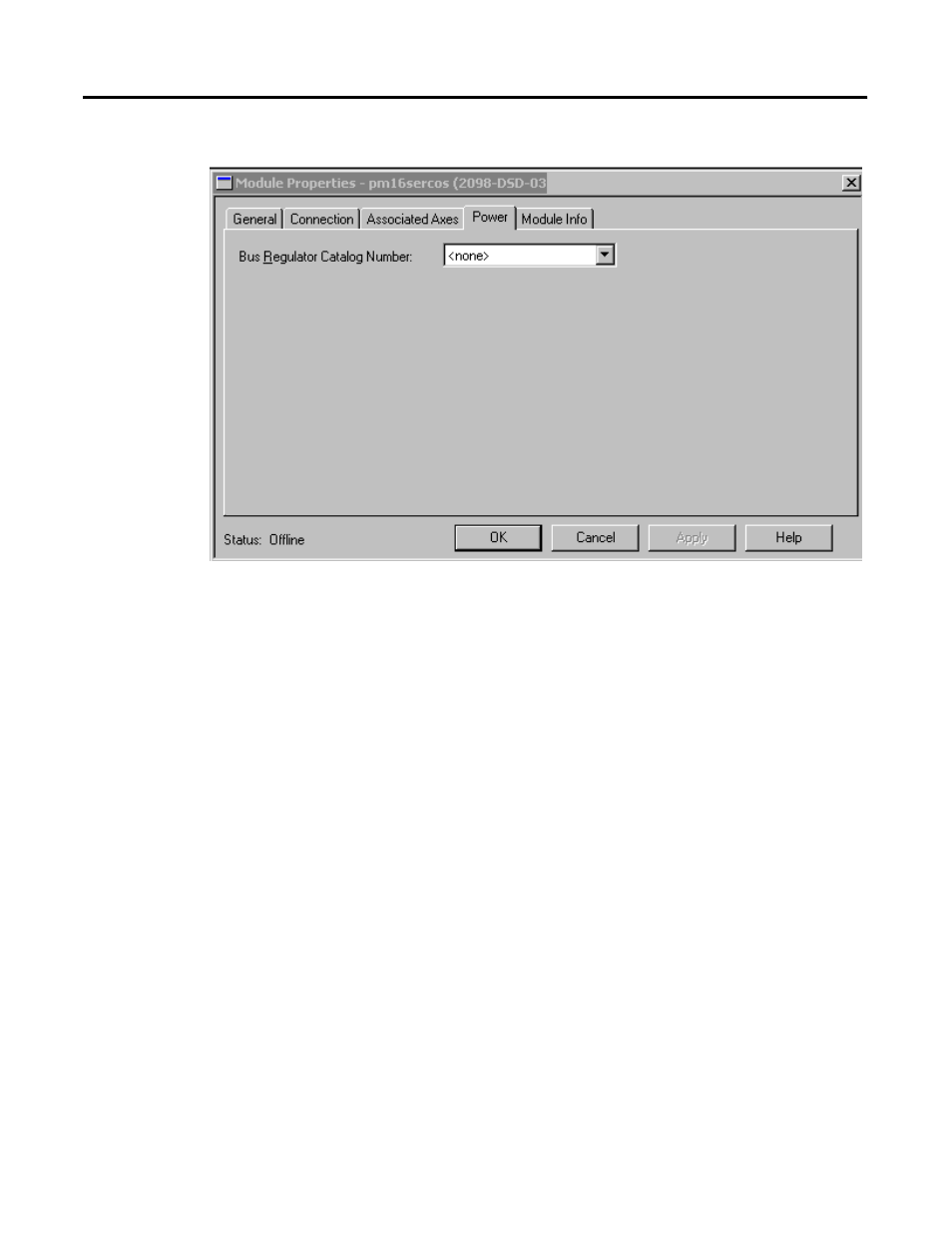

Figure 9.14 Module Properties - Power Tab

Note: This parameter does not apply to the Ultra3000 SERCOS drives.
The only available selection in the Bus Regulator ID pull-down menu is
.

Bus Regulator ID

Select the catalog number that describes bus regulator device used by the Ultra
3000 drive module. Depending upon the Drive Module you have selected, one
or more of the following are available:

Note: This parameter does not apply to the Ultra3000 SERCOS drives.
The only available selection in the pull-down menu is .
