Controller Fault Handler

Choose the program that runs as the result of a system fault from the
pull-down menu. The list contains all of the unscheduled programs.

Power-Up Handler

Choose the program the processor executes when it powers up in Run mode
after a power-down in Run mode. The list contains all of the unscheduled
programs.

System Overhead Time Slice

Enter or select the percentage of time the controller spends running its system
task, relative to running user tasks.

SFC Execution Tab

The SFC Execution tab sets the configuration that affects the execution of the
SFC (Sequential Function Chart). These settings apply to the entire Controller
and therefore affect all SFCs within the Controller.

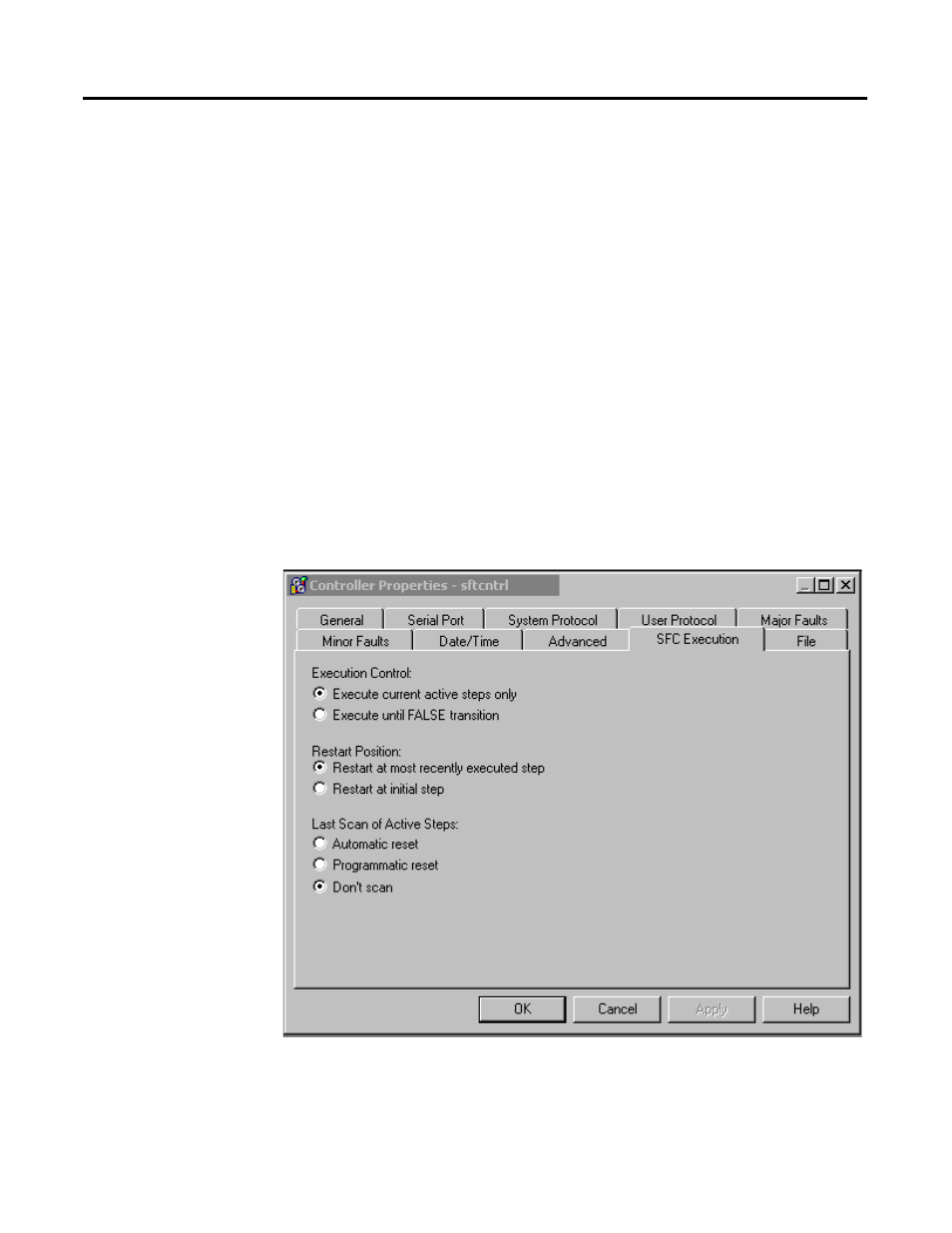

Figure 2.12 Controller Properties SFC Execution Tab
