Publication 1784-UM003A-EN-P – June 2003
Configuring an 8720MC Drive 239
3. In the Select Module Type dialog, select the desired drive module. The
8720MC drives begin with the 8720MC prefix.
4. Press the OK button to close the Select Module Type dialog. The
8720MC Drive Create Wizard Module Properties dialog opens.

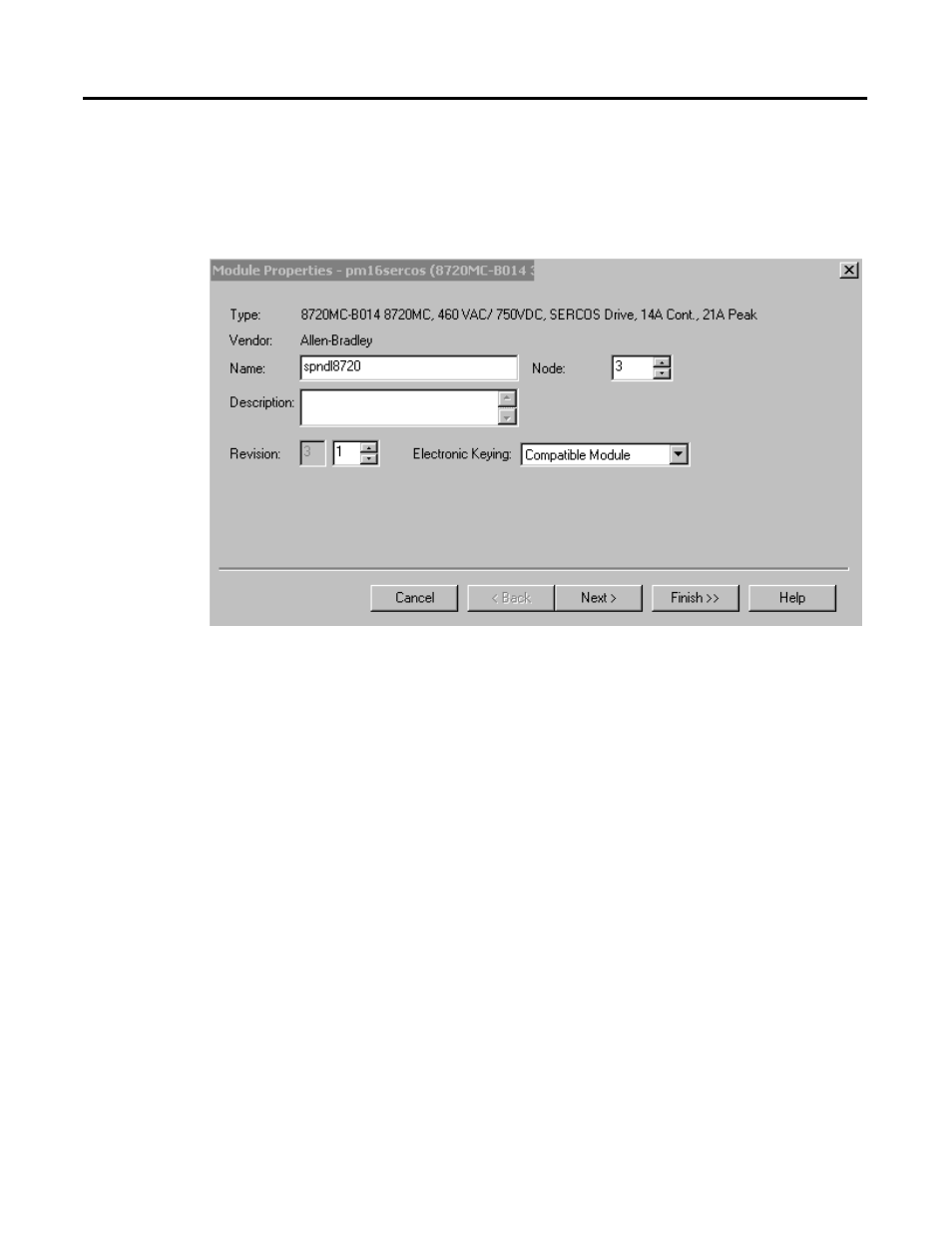

Figure 11.4 Module Properties Wizard Dialog - Naming the Drive
5. You must fill in a name for the drive; this is a required field. Fill in the
responses for the other parameters as needed.
The following fields are displayed only if you are viewing this tab through the
Create wizard.
Next> – Click this button to view the next Create wizard page.
Finish>> – Click this button to close the Create wizard. Click on the Finish>> button to create the drive list it in the Controller
Organizer.
