Transmit power, Sercos interface info tab, Ring comm. phase – Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 82
Publication 1784-UM003A-EN-P – June 2003
74 Configuring the1784-PM16SE Card
Transmit Power
Select the optic transmit power range for the SERCOS ring:
• High
• Low
It is recommended that you set to High.
SERCOS Interface Info Tab
The SERCOS interface Tab is for monitoring the SERCOS ring of the selected
1784-PM16SE while it is on-line. A REFRESH button is available to access
the current values.

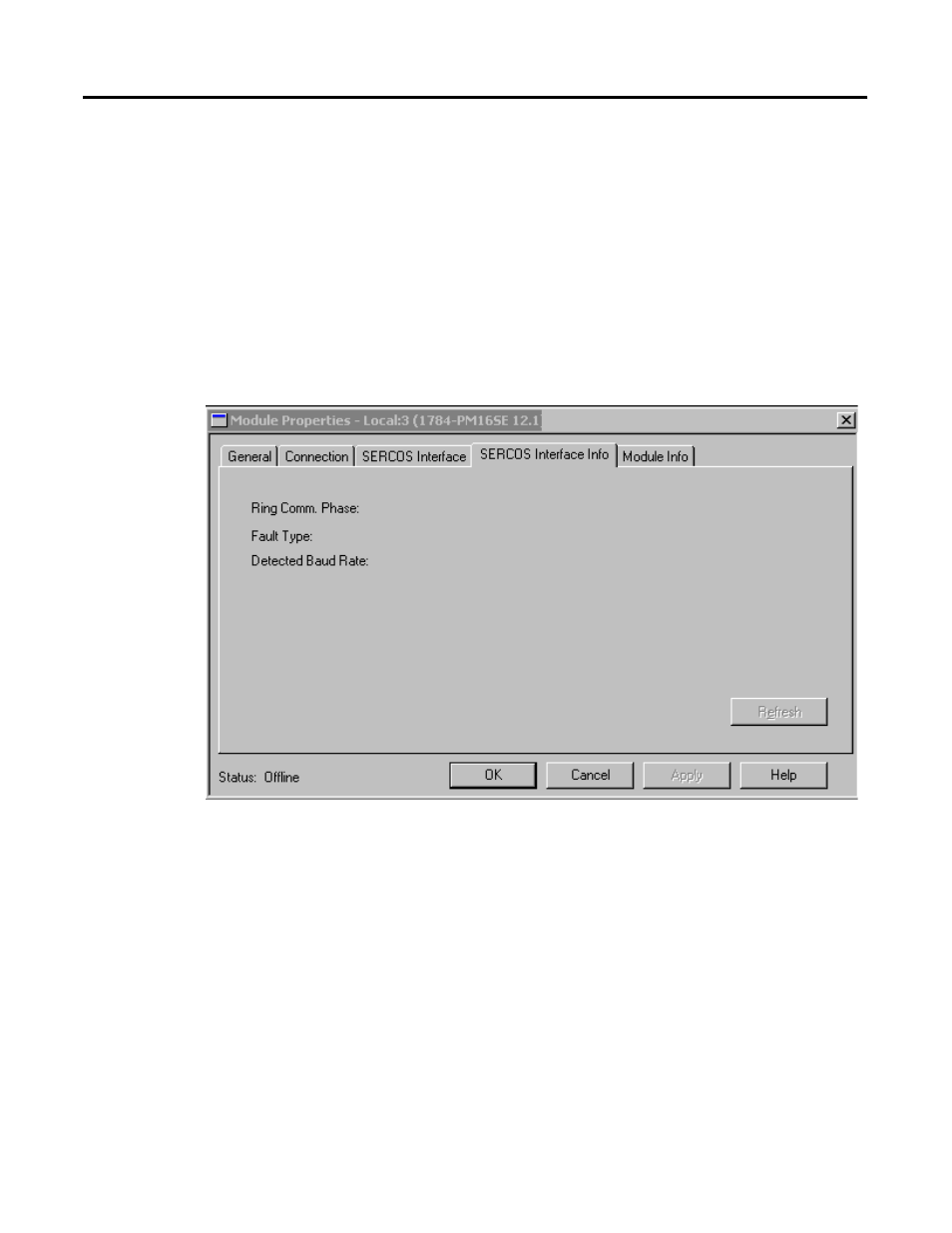

Figure 4.10 Module Properties - SERCOS Interface Info Tab
Use this tab to monitor the following:
Ring Comm. Phase
Displays the communications phase of the SERCOS ring:
0: Ring Integrity
1: Polling
2: Identity
3: Configuration
4: Cyclic communication
