148 Naming & Configuring Your Motion Axis
Note: The Manual Adjust button is disabled when RSLogix 5000 is in
Wizard mode, and when offline edits to the above parameters have not
yet been saved or applied.
Limits Tab - AXIS_SERVO
Use this tab to make the following offline configurations:
• enable and set maximum positive and negative software travel limits, and
• configure both Position Error Tolerance and Position Lock Tolerance,
and
• set the servo drive’s Output Limit
for an axis of the type AXIS_SERVO configured as a Servo drive in the
General tab of this dialog.

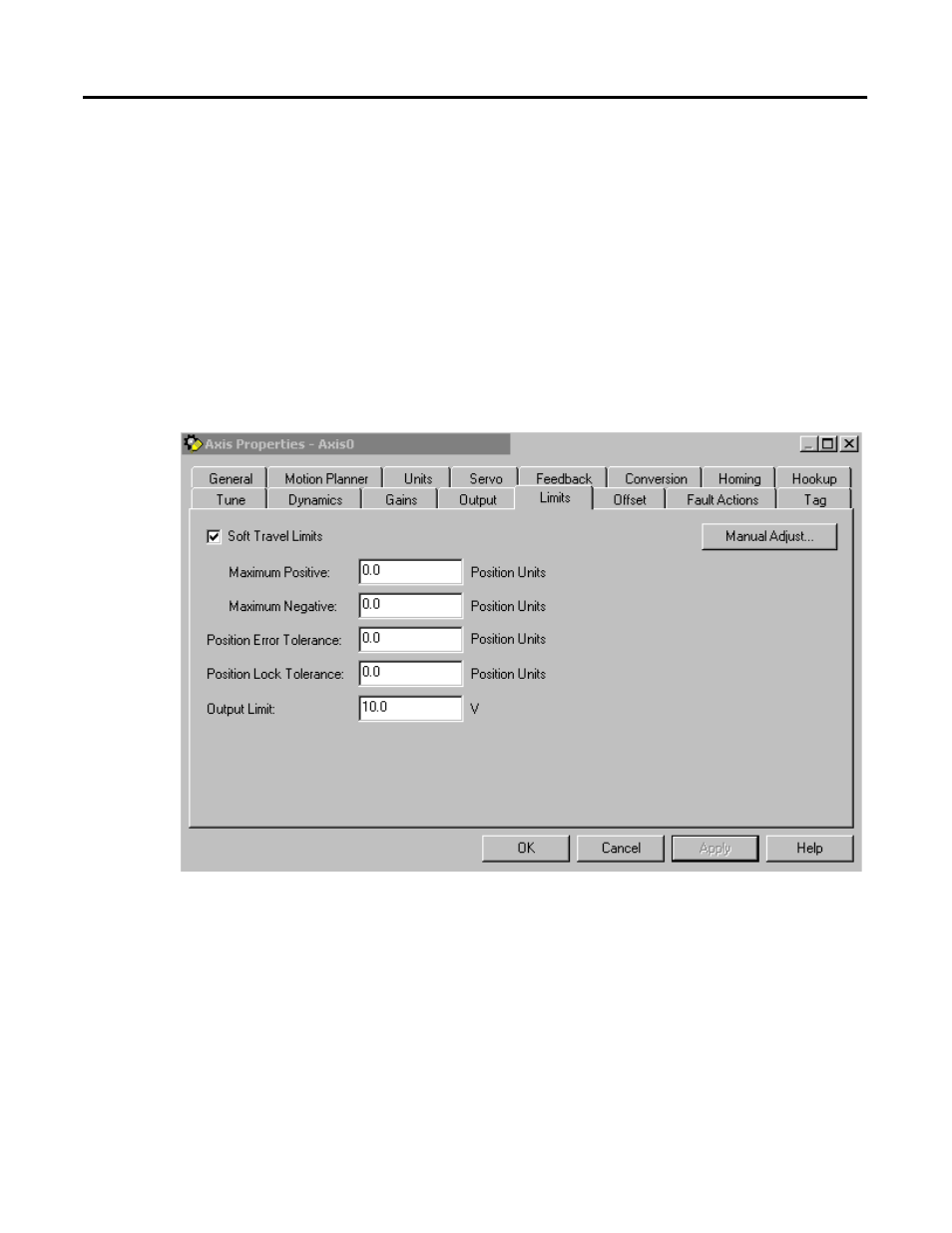

Figure 6.35 Axis Properties - Limits Tab for Axis_Servo
The parameters on this tab can be edited in either of two ways:
• edit on this tab by typing your parameter changes and then clicking on
OK or Apply to save your edits
• edit in the Manual Adjust dialog: click on the Manual Adjust button to
open the Manual Adjust dialog to this tab and use the spin controls to
edit parameter settings. Your changes are saved the moment a spin
control changes any parameter value.
