Feedback tab - (axis_servo), Feedback type – Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 112
Publication 1784-UM003A-EN-P – June 2003
104 Naming & Configuring Your Motion Axis
Feedback Tab – (AXIS_SERVO)
The Feedback Tab allows you to select the type of Feedback used with your
Servo axis.

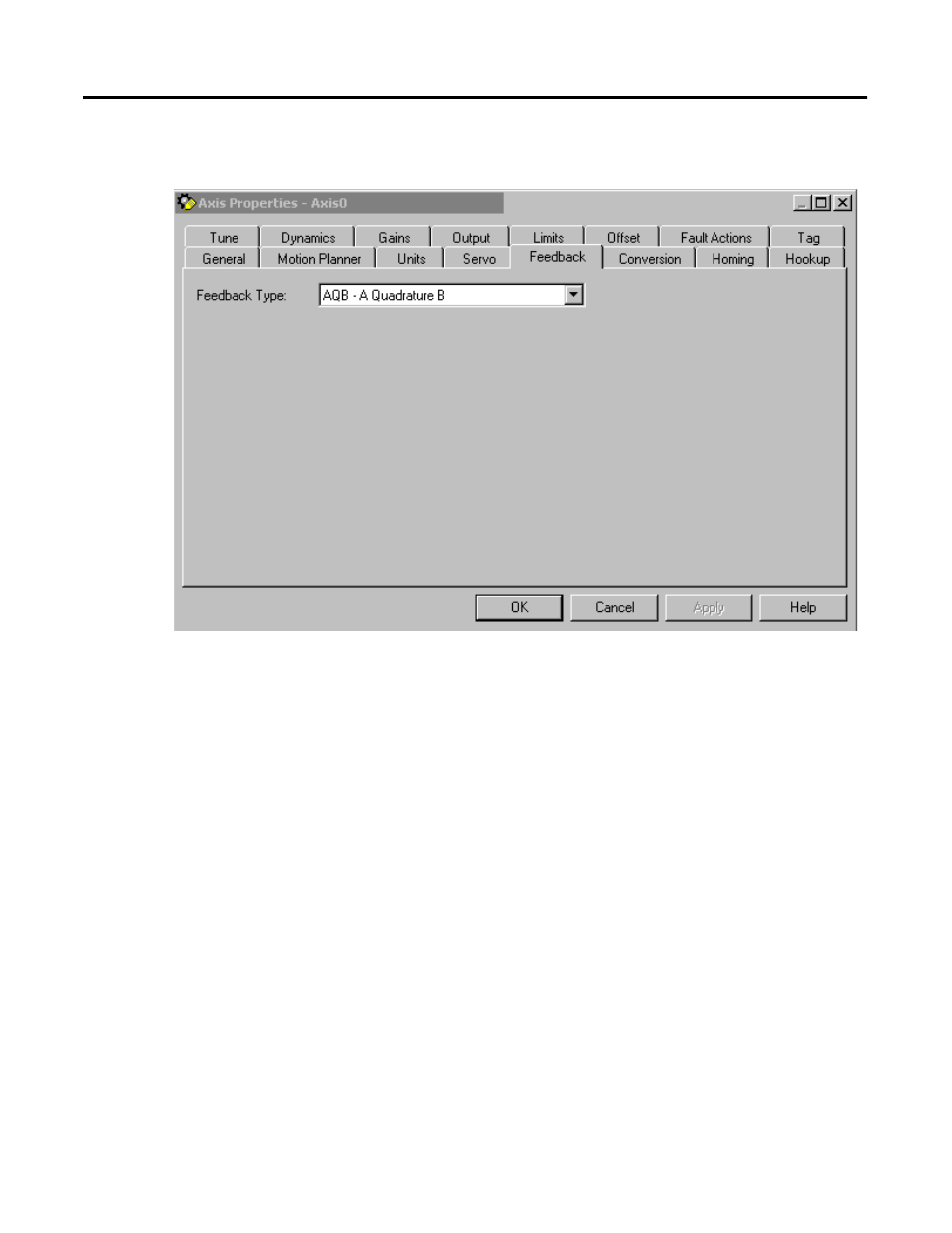

Figure 6.12 Axis Properties - Feedback Tab for Axis_Servo
Feedback Type
Select the appropriate Feedback for your current configuration.
