Module info tab, Identification – Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 210
Publication 1784-UM003A-EN-P – June 2003
202 Configuring a 1394x-SJTxx-D Digital Servo Drive
Module Info tab
Use this tab to display identifying and status information about the
1394x-SJTxx-D drive module. It also allows you to refresh a module and reset
a module to its power-up state.

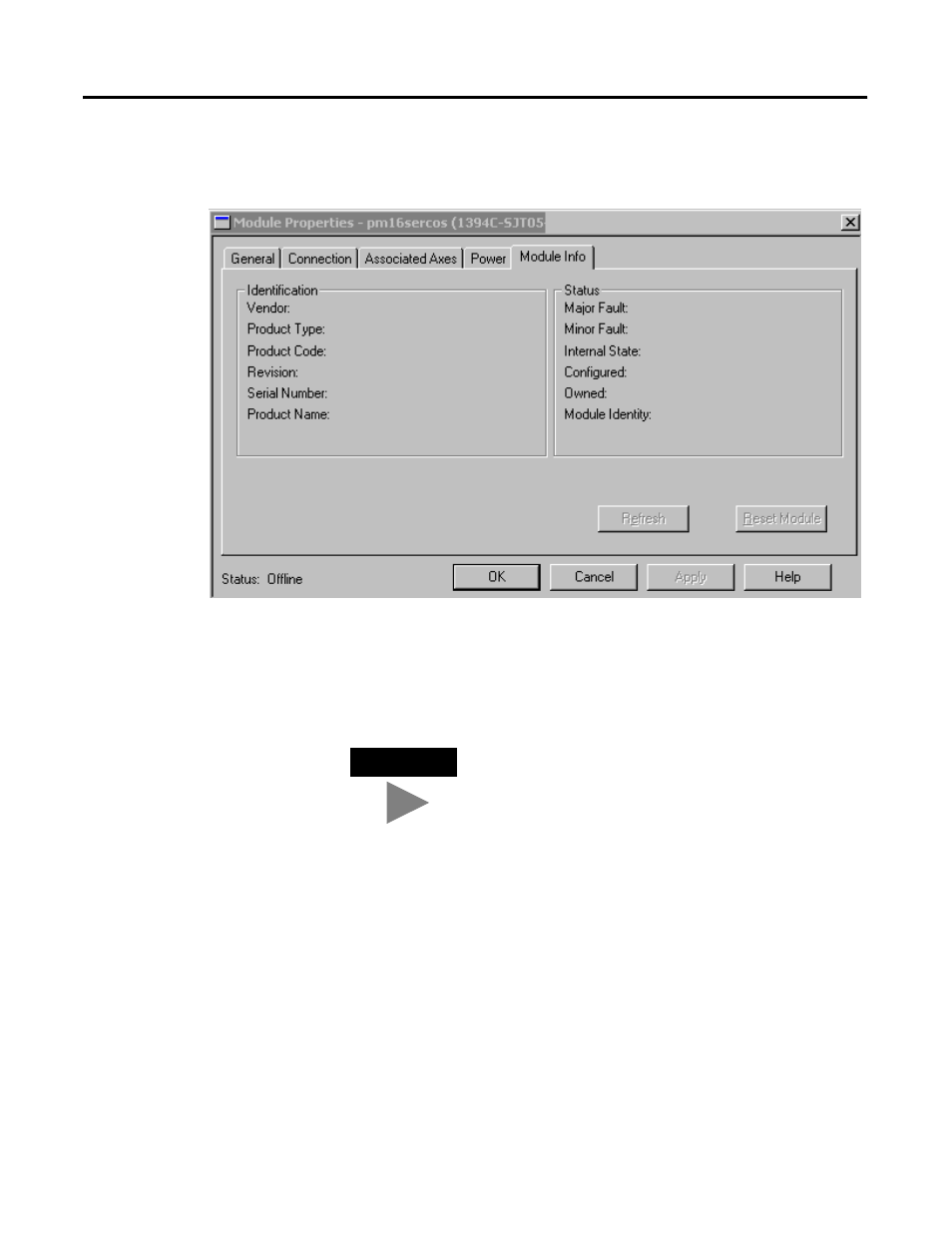

Figure 8.9 Module Properties - Module Info Tab
The information on this tab is not displayed if you are:
• offline, or
• currently creating a module
Identification
Displays the module’s:
• Vendor
• Product Type
• Product Code
• Revision
• Serial Number
TIP
The data on this tab comes directly from the module. If
you selected a Listen-Only communication format when
you created the module, this tab is not available.
