Adding and Configuring Your 1784-PM02AE Motion Module 47
3. Click on the Clear All button to clear the dialog window then click on
Motion to list the available Motion Controllers.

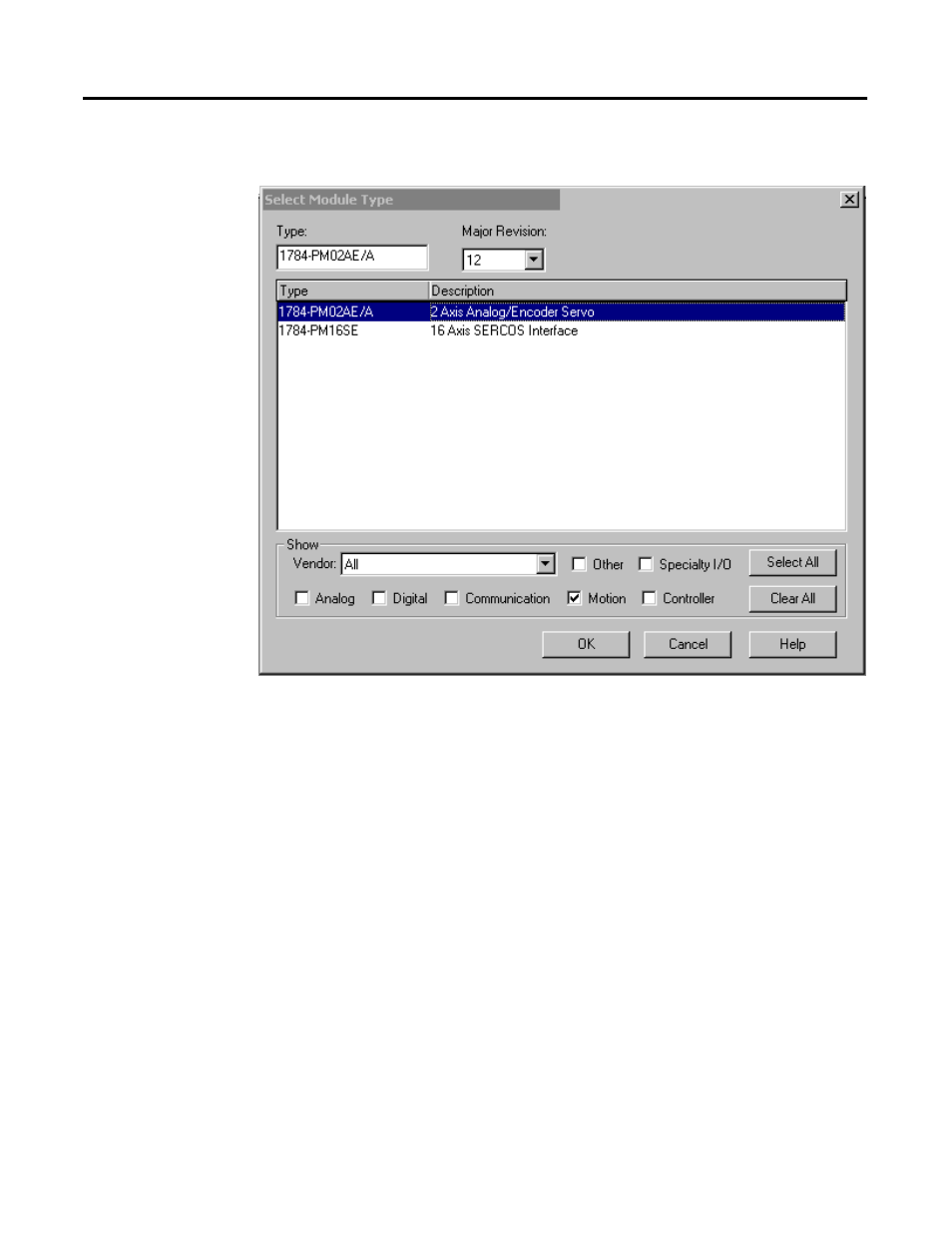

Figure 3.3 Select Module Type Screen with Motion Options - M02AE Highlighted
New Module Use this dialog to select and create a new module. Highlight the
1784-PM02AE The context sensitive menu appears, from which you can select
a New Module.
Type
The Type field displays the catalog number of the module highlighted in the
Type list box. You can either type in a module catalog number in this field to
quickly select/find the module you want to create or you can scroll through
the list of modules in the Type list box.
