246 Configuring an 8720MC Drive
Associated Axes Tab (8720MC
Drives)
Use this tab to configure the selected 1784-PM16SE motion module by
associating axis tags (of the type AXIS_SERVO_DRIVE) with nodes available
on the module.

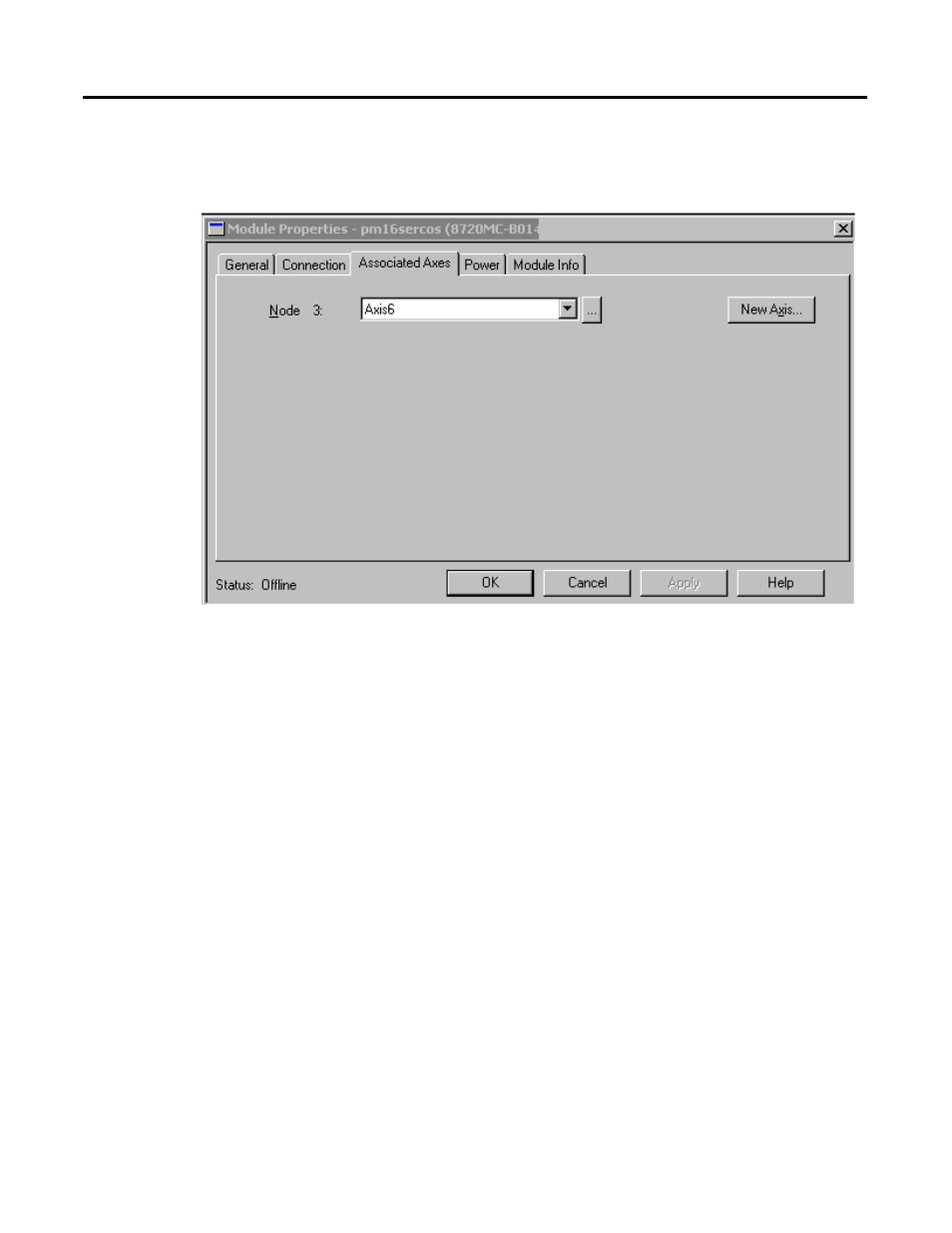

Figure 11.8 Module Properties - Associated Axes Tab
Node
Displays the selected node of the 8720MC drive, as selected on the General
tab. This field allows you to associate an AXIS_SERVO_DRIVE tag with the
driver’s node. This field is read-only while you are online.
Ellipsis (...)
Click on this button to access the Axis Properties dialog for the associated axis.
New Axis
Click on this button to access the New Tag dialog, with the scope, data type,
and produced settings appropriate for a produced axis tag. See the chapter
titled Naming & Configuring Your Motion Axis for the steps on how to configure
a motion axis.
