Publication 1784-UM003A-EN-P – June 2003

Configuring a 1394x-SJTxx-D Digital Servo Drive 201

Power Tab

Use this tab to select a bus regulator for your 1394x-SJTxx-D drive module.

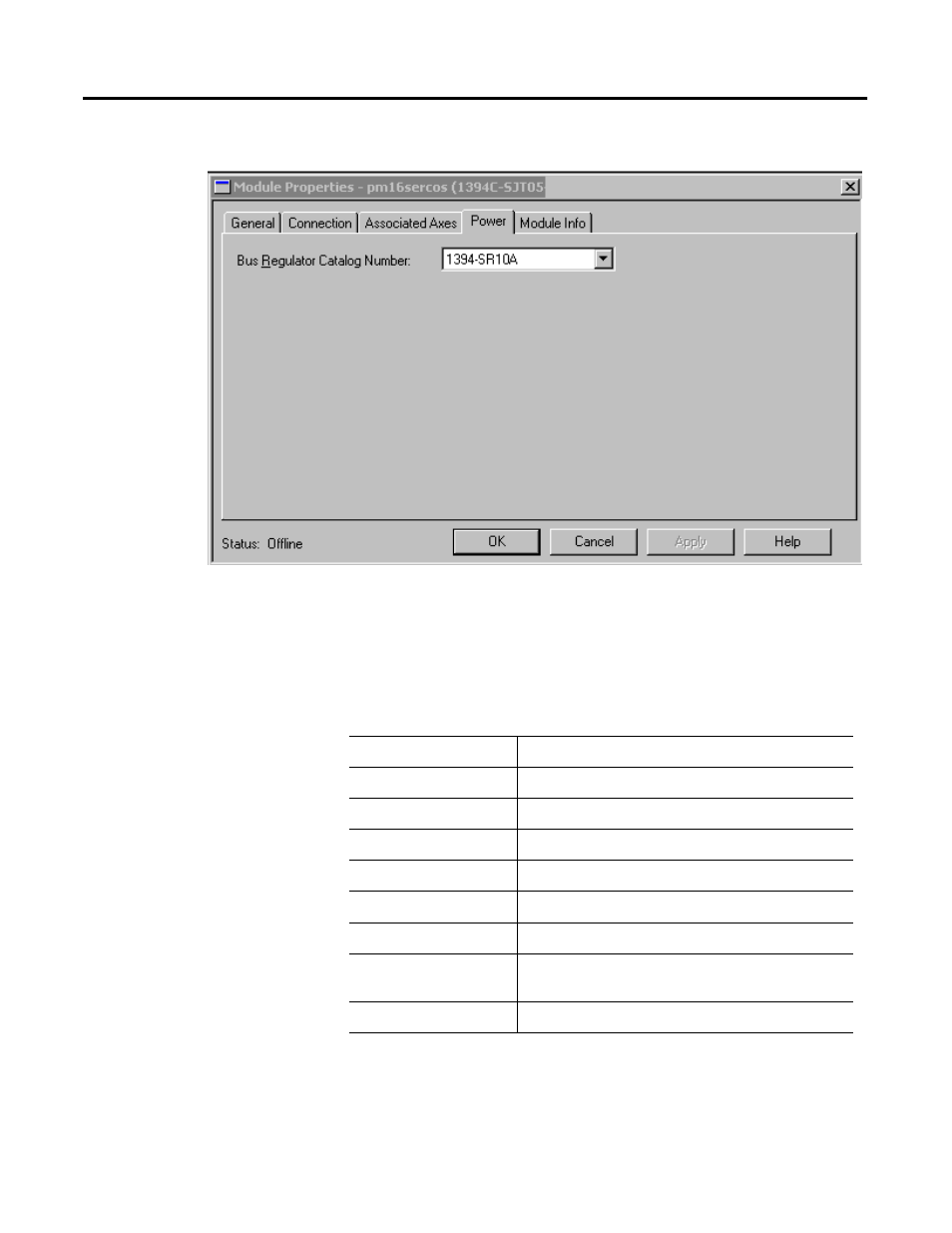

Figure 8.8 Module Properties - Power Tab

Bus Regulator ID

Select the catalog number that describes bus regulator device used by the
1394x-SJTxx-D drive module. Depending upon the Drive Module you have
selected, one or more of the following are available:

Bus Regulator ID

Description

1394-SR10A

1400 Watt Resistor, for 5 and 10 kW modules

1394-SR9A

300 Watt External Shunt, No Fan, for 22 kW modules

1394-SR9AF

900 Watt External Shunt, No Fan, for 22 kW modules

1394-SR36A

1800 Watt External Shunt, No Fan, for 22 kW modules

1394-SR36AF

3600 Watt External Shunt, No Fan, for 22 kW modules

No bus regulator

Internal

The bus regulator is internal to the drive and need not be
specified

Custom

A bus regulator not listed above
