Publication 1784-UM003A-EN-P – June 2003

8 The SoftLogix Motion Control System

Additional information in the form of a tooltip about the modules can be
ascertained by placing the mouse over a specific module.

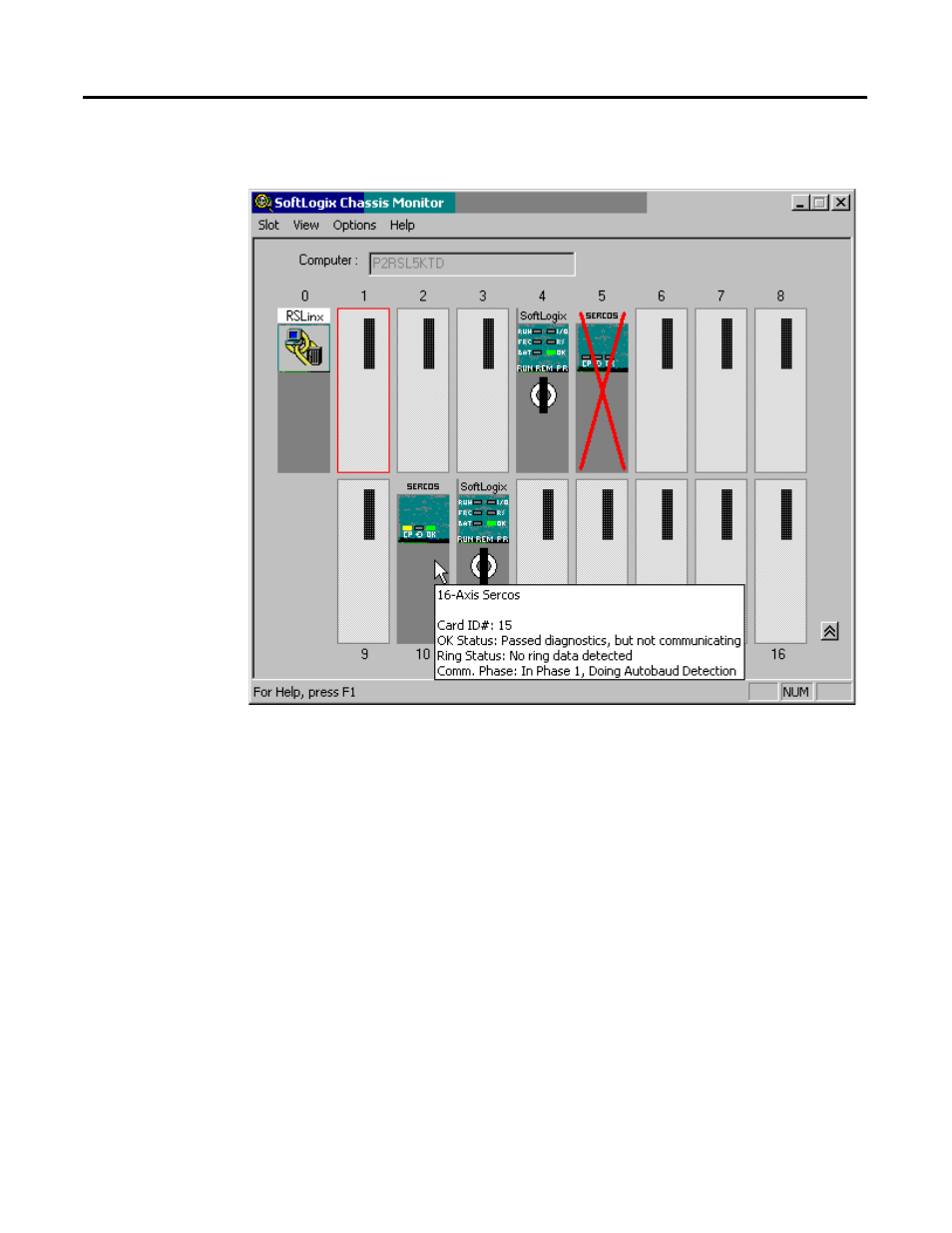

Figure 1.4 Additional Information for the PM16SE Card

The SoftLogix Controller

The SoftLogix controller is the main component in the SoftLogix system. It
supports sequential and motion functions, and it performs all of the motion
command execution and motion trajectory planner functions. You can use one
or more SoftLogix controllers in each chassis, and each controller can control
up to 32 axes of motion.

The SoftLogix controller provides the following motion support:

• A high-speed motion task, which manages motion functions and

generates move profiles

• The ability to control up to 16 Analog/Encoder servo modules for a

total of 32 axes

• SERCOS support
