Drive/motor tab - (axis_servo_drive), Amplifier catalog number – Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 113
Publication 1784-UM003A-EN-P – June 2003
Naming & Configuring Your Motion Axis 105
Drive/Motor Tab -
(AXIS_SERVO_DRIVE)
Use this tab to configure the servo loop for an AXIS_SERVO_DRIVE axis,
and open the Change Catalog dialog box.

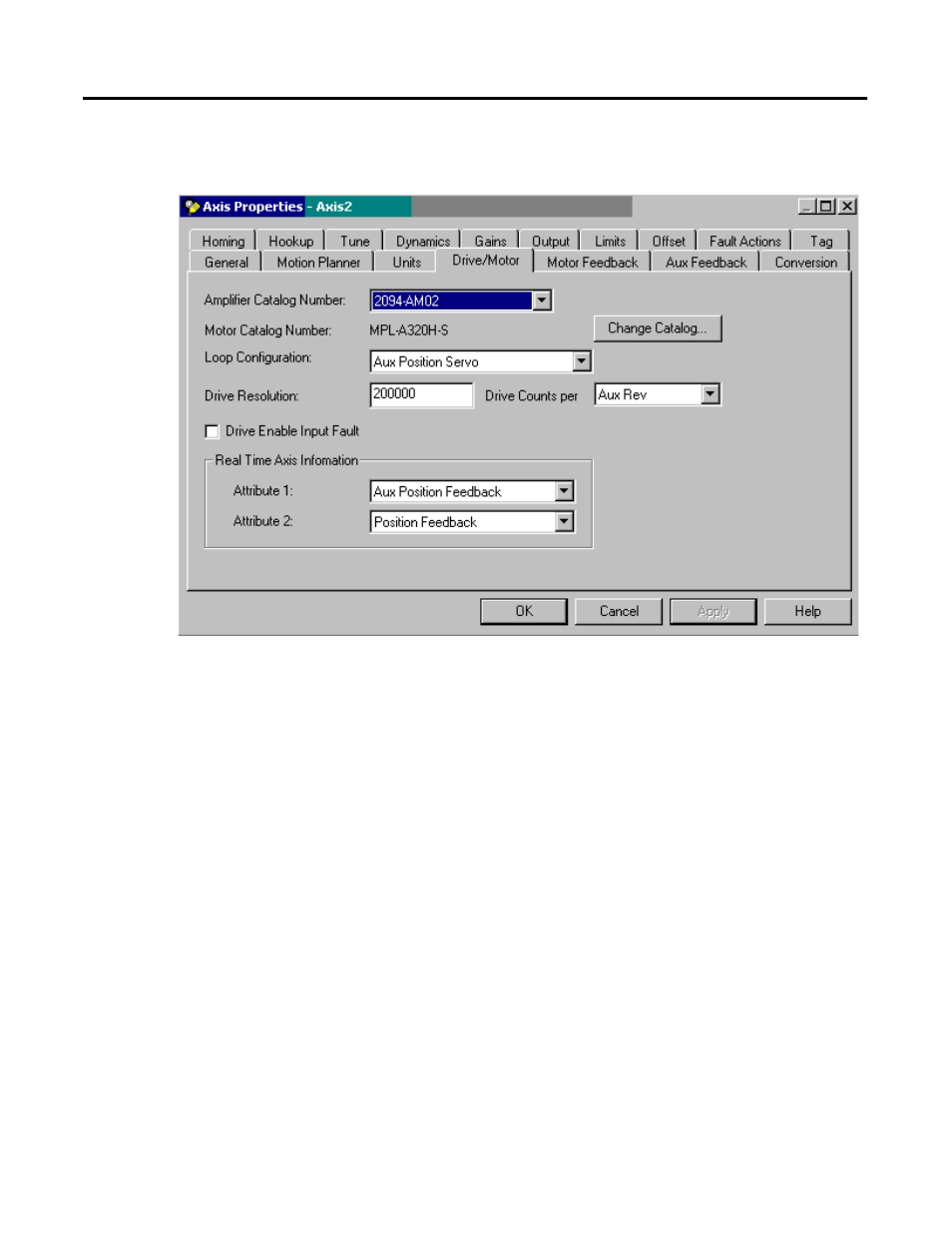

Figure 6.13 Axis Properties - Drive Tab for Axis_Servo_Drive
When a parameter transitions to a read-only state, any pending changes to
parameter values are lost, and the parameter reverts to the most recently saved
parameter value.
Amplifier Catalog Number
Select the catalog number of the amplifier to which this axis is connected.
